Rocker Arm Oil Pressure Switch Connector End View

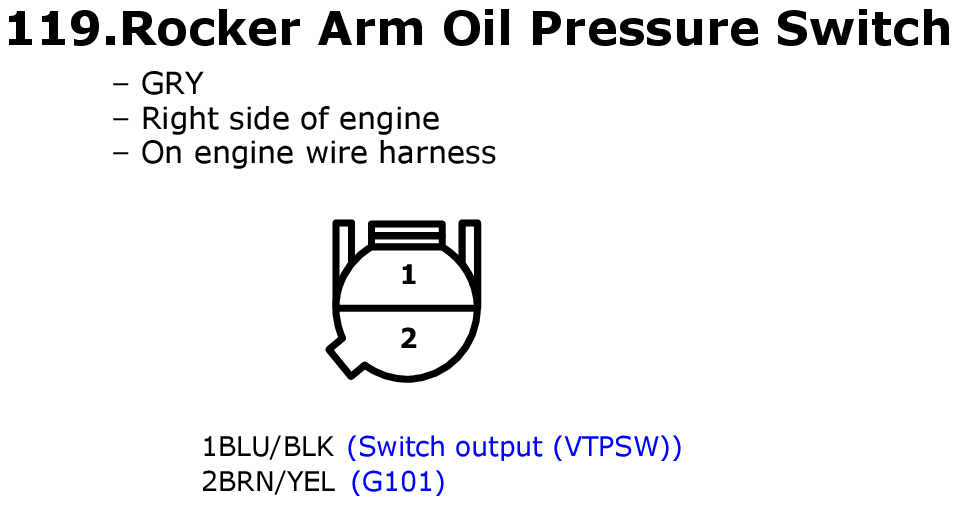

Fig 1: Rocker Arm Oil Pressure Switch Connector End View

GHHW11192

Courtesy of AMERICAN HONDA MOTOR CO., INC.
