Left Front Turn Signal/Parking/Side Marker Lights Connector End View

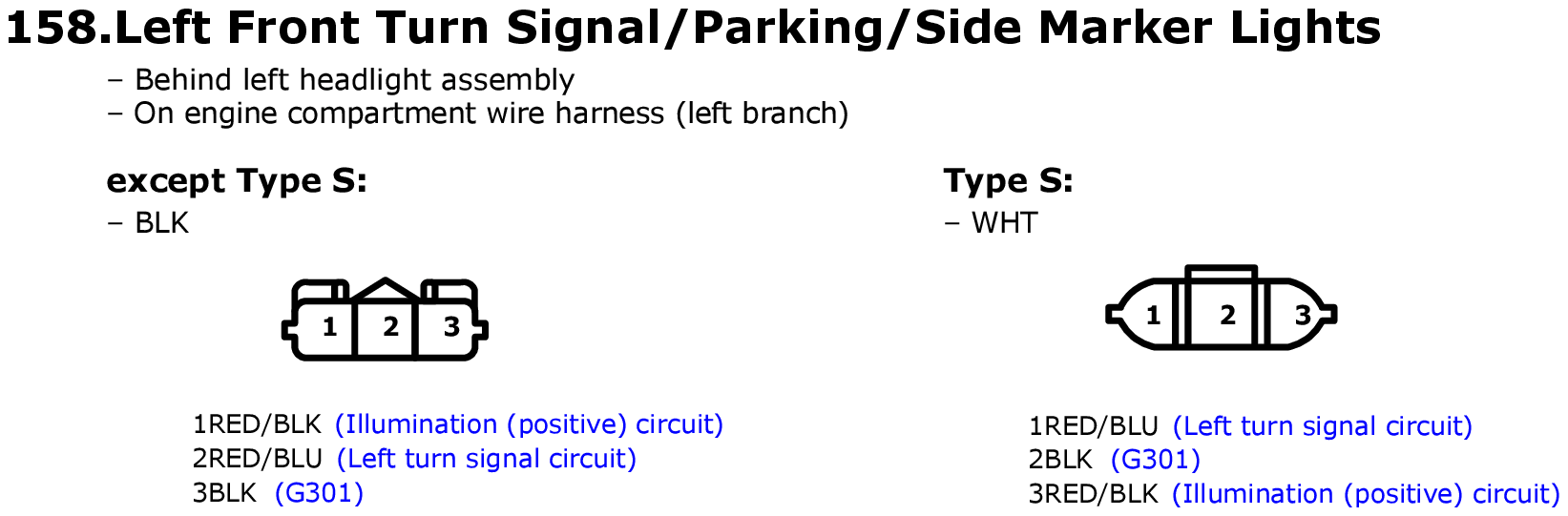

Fig 1: Left Front Turn Signal/Parking/Side Marker Lights Connector End View

GHHW11231

Courtesy of AMERICAN HONDA MOTOR CO., INC.
