Input Shaft (Mainshaft) Speed Sensor Connector End View

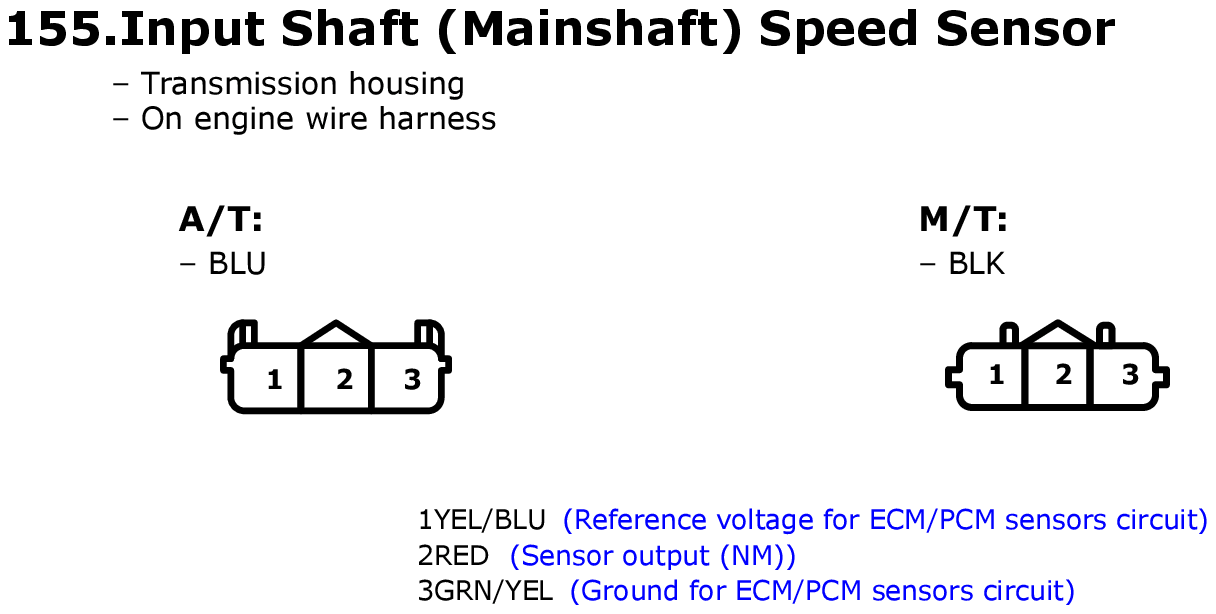

Fig 1: Input Shaft (Mainshaft) Speed Sensor Connector End View

GHHW11228

Courtesy of AMERICAN HONDA MOTOR CO., INC.
