Driver's Vanity Mirror Light Switch Connector End View

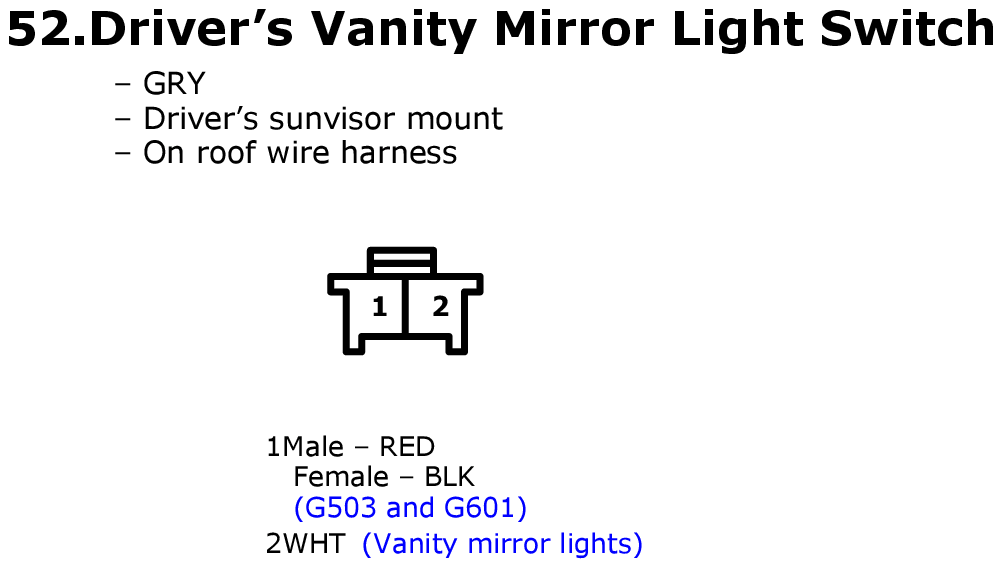

Fig 1: Driver's Vanity Mirror Light Switch Connector End View

GHHW11125

Courtesy of AMERICAN HONDA MOTOR CO., INC.
