Component Location Index

WARNING: This page is about a different variant/trim than selected.

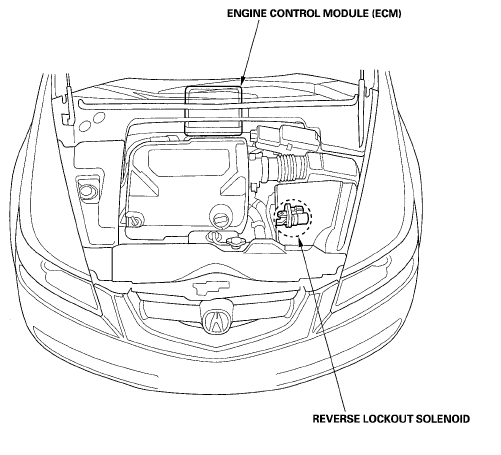

Fig 1: Identifying Engine Control Module And Reverse Lockout Solenoid
G05458509Courtesy of AMERICAN HONDA MOTOR CO., INC.

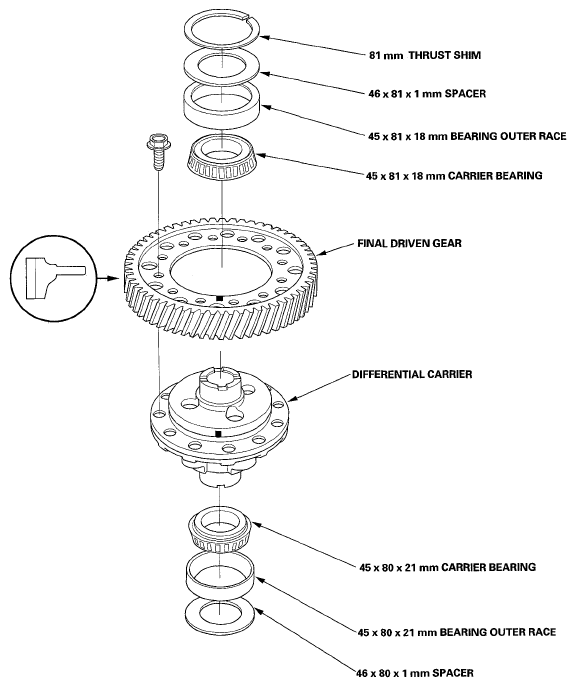

Fig 1: Identifying M/T Differential Components Location
G05458739Courtesy of AMERICAN HONDA MOTOR CO., INC.
