DTC P0776: A/T Clutch Pressure Control Solenoid Valve B Stuck OFF: Notes

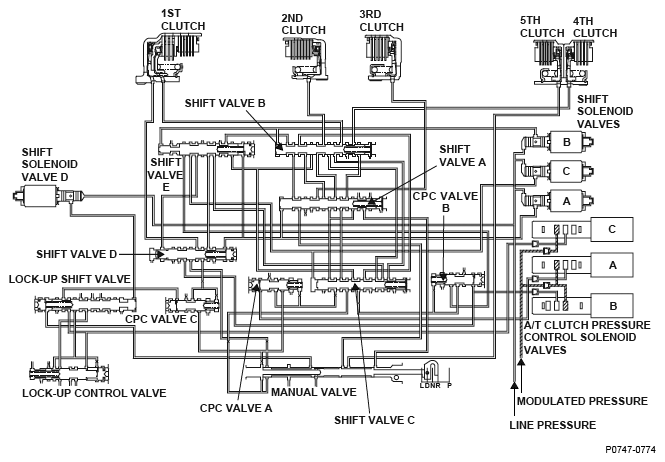

Fig 1: A/T Clutch Pressure Control Solenoid Valve B - Operation Diagram
G04836638

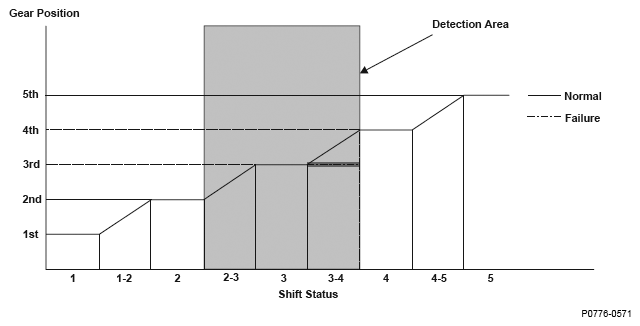

Fig 2: Gear Position VS Shift Status Graph
G04822994

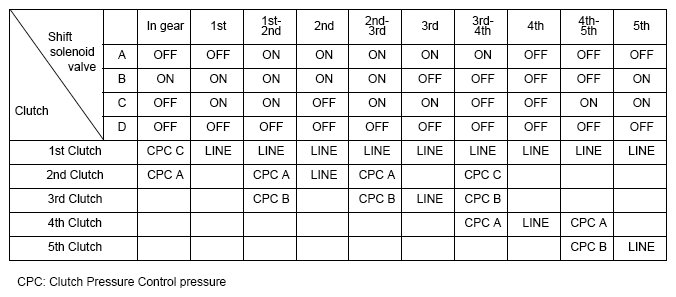

Fig 3: Hydraulic Pressure Supply To Clutch By Shift Solenoid Valve Output (D Position)
G04836669
