Component Location Index

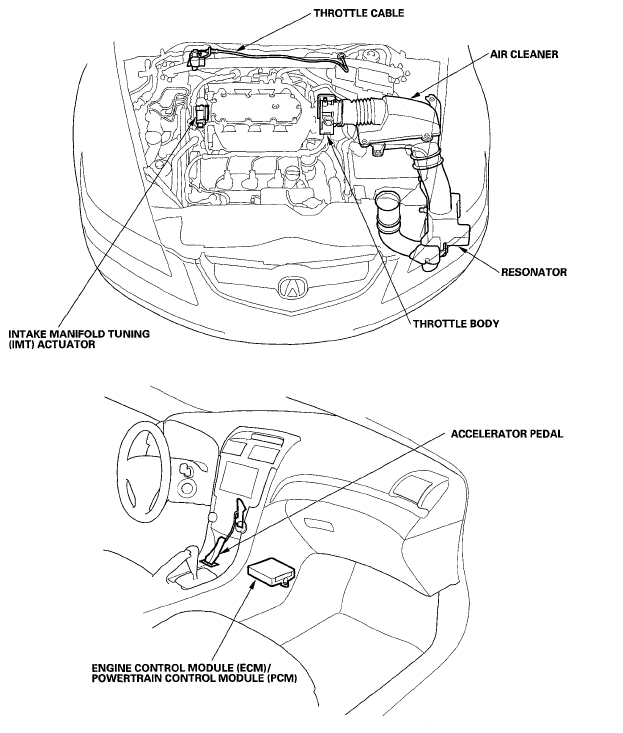

Fig 1: Identifying Intake Air System Component Location

G05458335

Courtesy of AMERICAN HONDA MOTOR CO., INC.
