Engine Mount Replacement

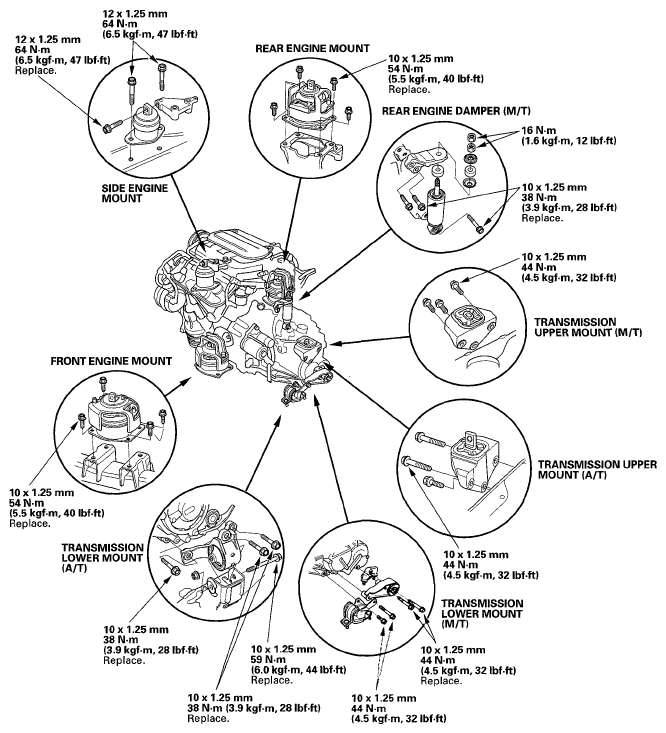

Fig 1: Engine Mount Replacement Components With Torque Specifications

G05457581

Courtesy of AMERICAN HONDA MOTOR CO., INC.
