Vacuum Distribution

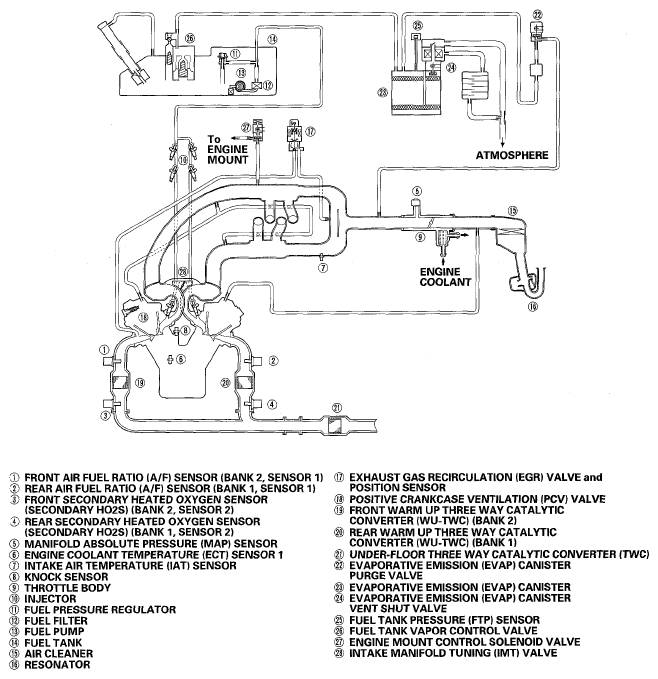

Fig 1: Vacuum Distribution Diagram

G05457878

Courtesy of AMERICAN HONDA MOTOR CO., INC.
