Home >> Acura >> 2007 >> TL Base >> Repair and Diagnosis >> Electrical >> Starter >> Starting System >> Starter Overhaul >> M/T model >> Disassembly/Reassembly

M/T model: Disassembly/Reassembly

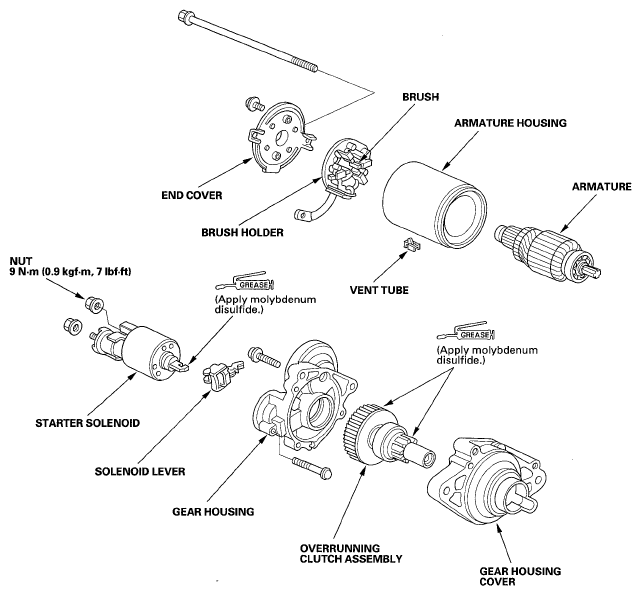

Fig 1: Starting System Replacement Components - M/T Models With Torque Specifications

G05457401

Courtesy of AMERICAN HONDA MOTOR CO., INC.
