Circuit Diagram

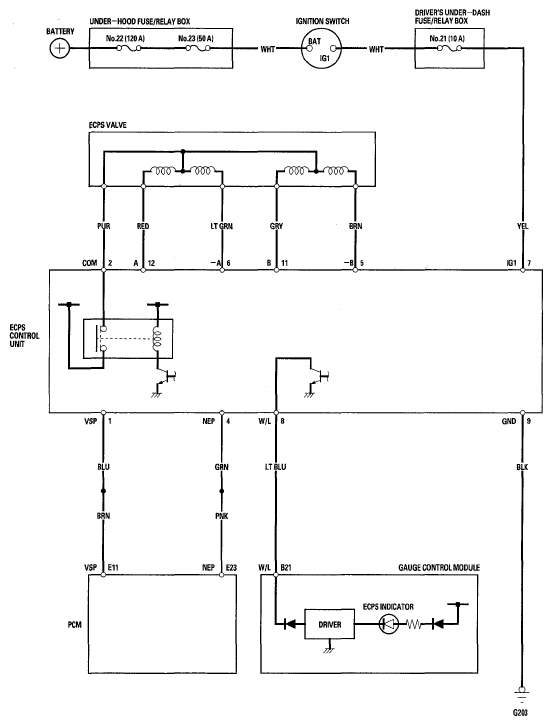

Fig 1: Electronically Controlled Power Steering System - Circuit Diagram

G05495060

Courtesy of AMERICAN HONDA MOTOR CO., INC.
