Right Rear Twiddler Connector End View

Fig 1: Right Rear Twiddler Connector End View
GHHW9102Courtesy of AMERICAN HONDA MOTOR CO., INC.

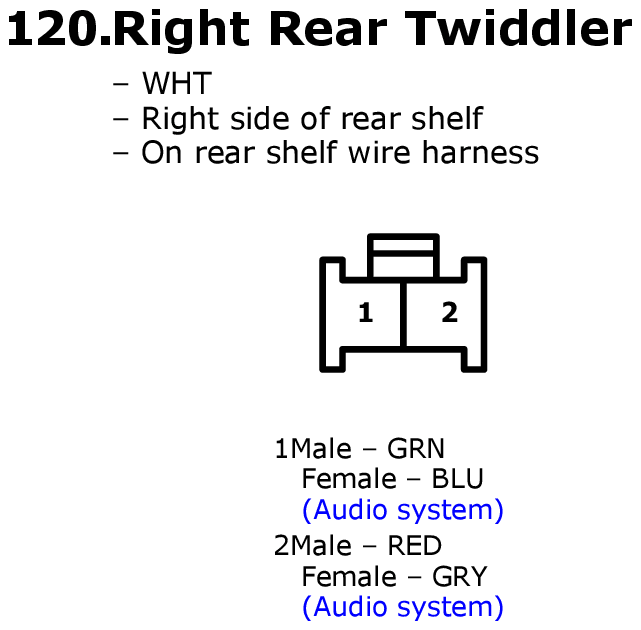

Fig 1: Right Rear Twiddler Connector End View
GHHW9545Courtesy of AMERICAN HONDA MOTOR CO., INC.
