Driver's Power Seat Front Up-down Motor/Position Sensor Connector End View

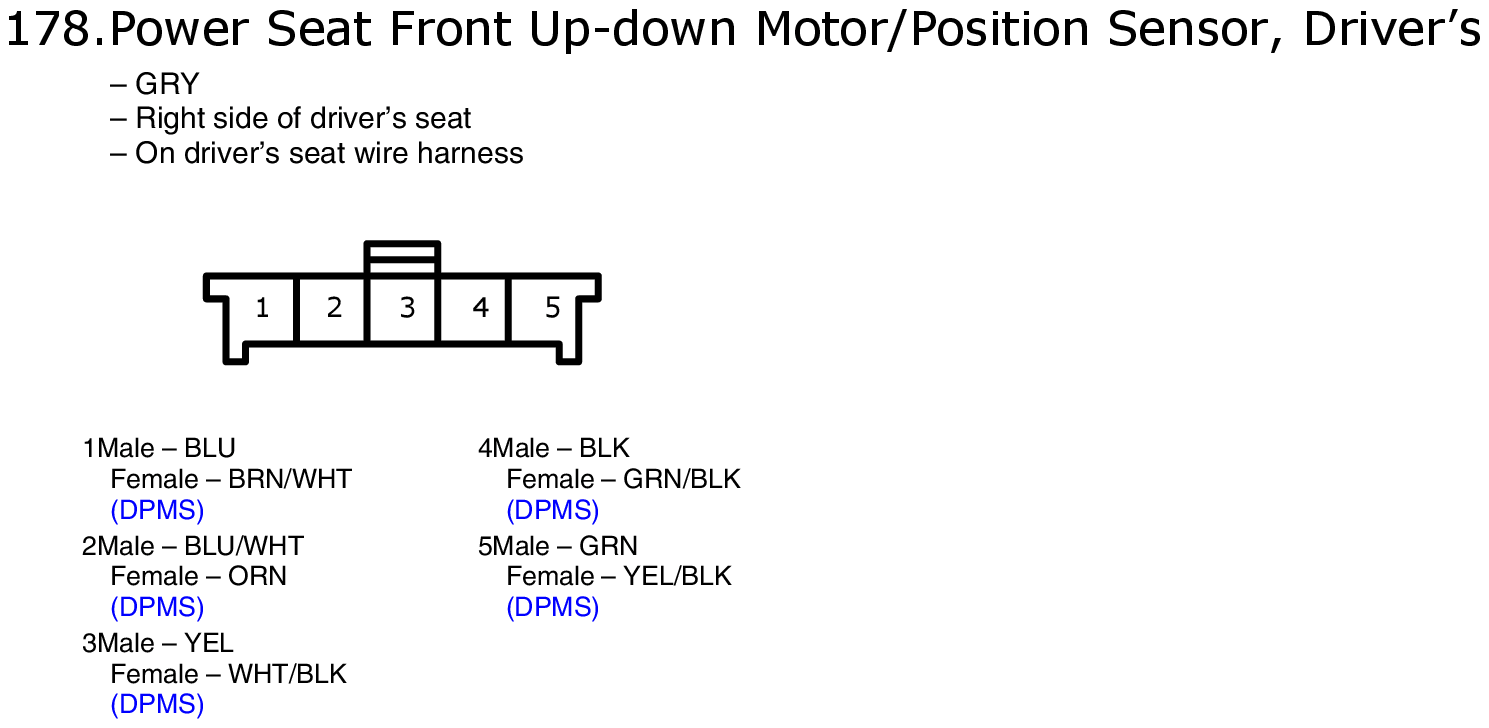

Fig 1: Driver's Power Seat Front Up-down Motor/Position Sensor Connector End View
GHHW9171Courtesy of AMERICAN HONDA MOTOR CO., INC.

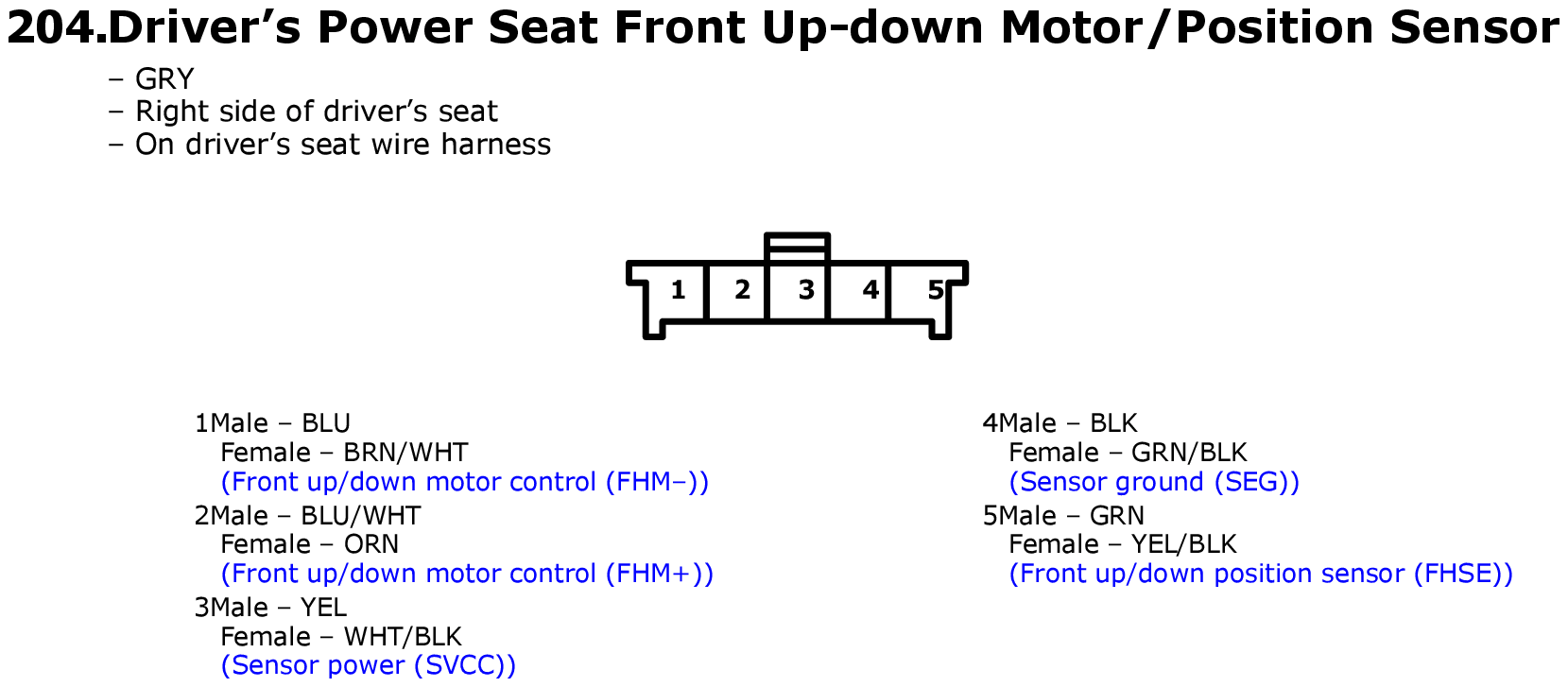

Fig 1: Driver's Power Seat Front Up-down Motor/Position Sensor Connector End View
GHHW9629Courtesy of AMERICAN HONDA MOTOR CO., INC.
