C658 Connector End View

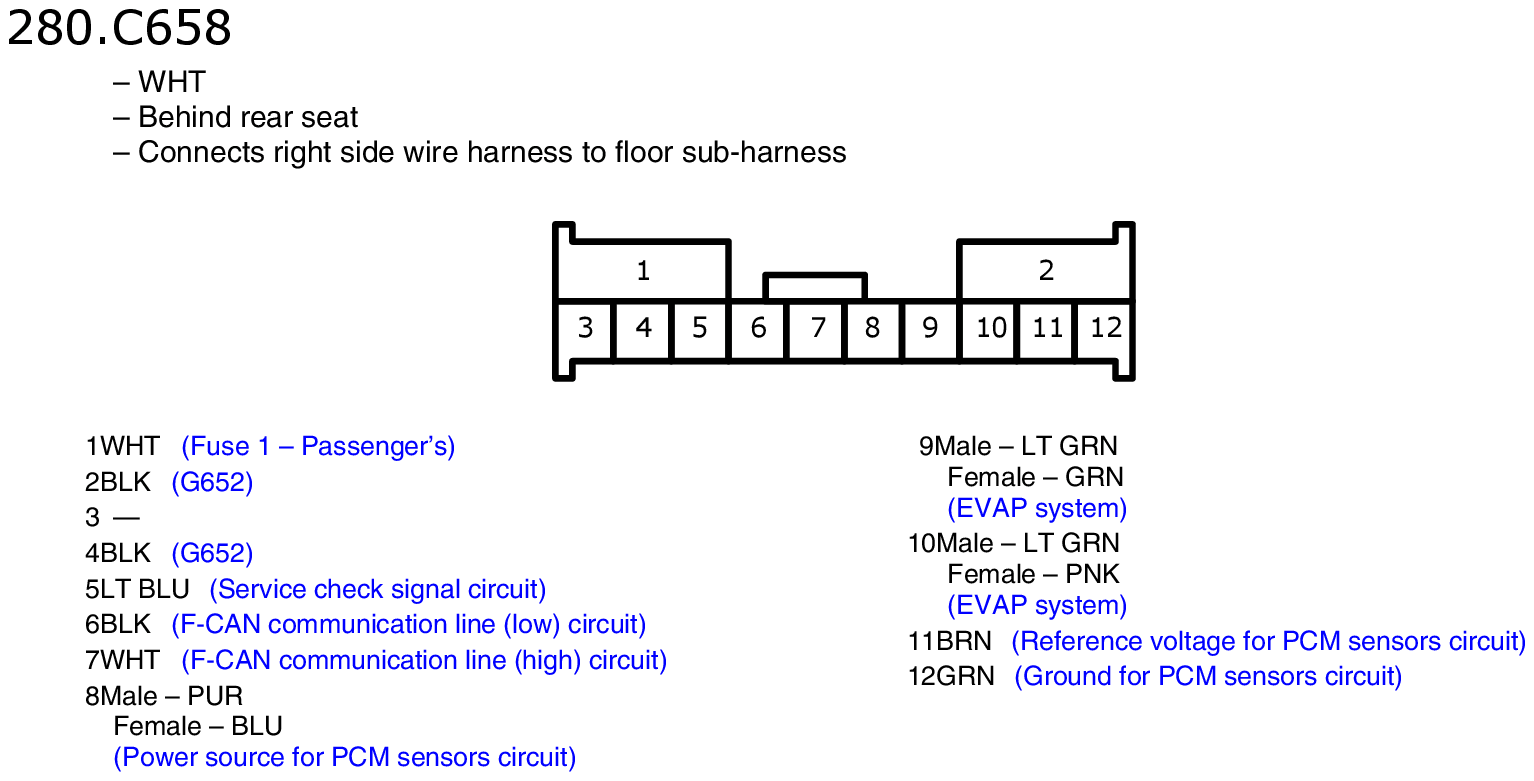

Fig 1: C658 Connector End View

GHHW9273

Courtesy of AMERICAN HONDA MOTOR CO., INC.

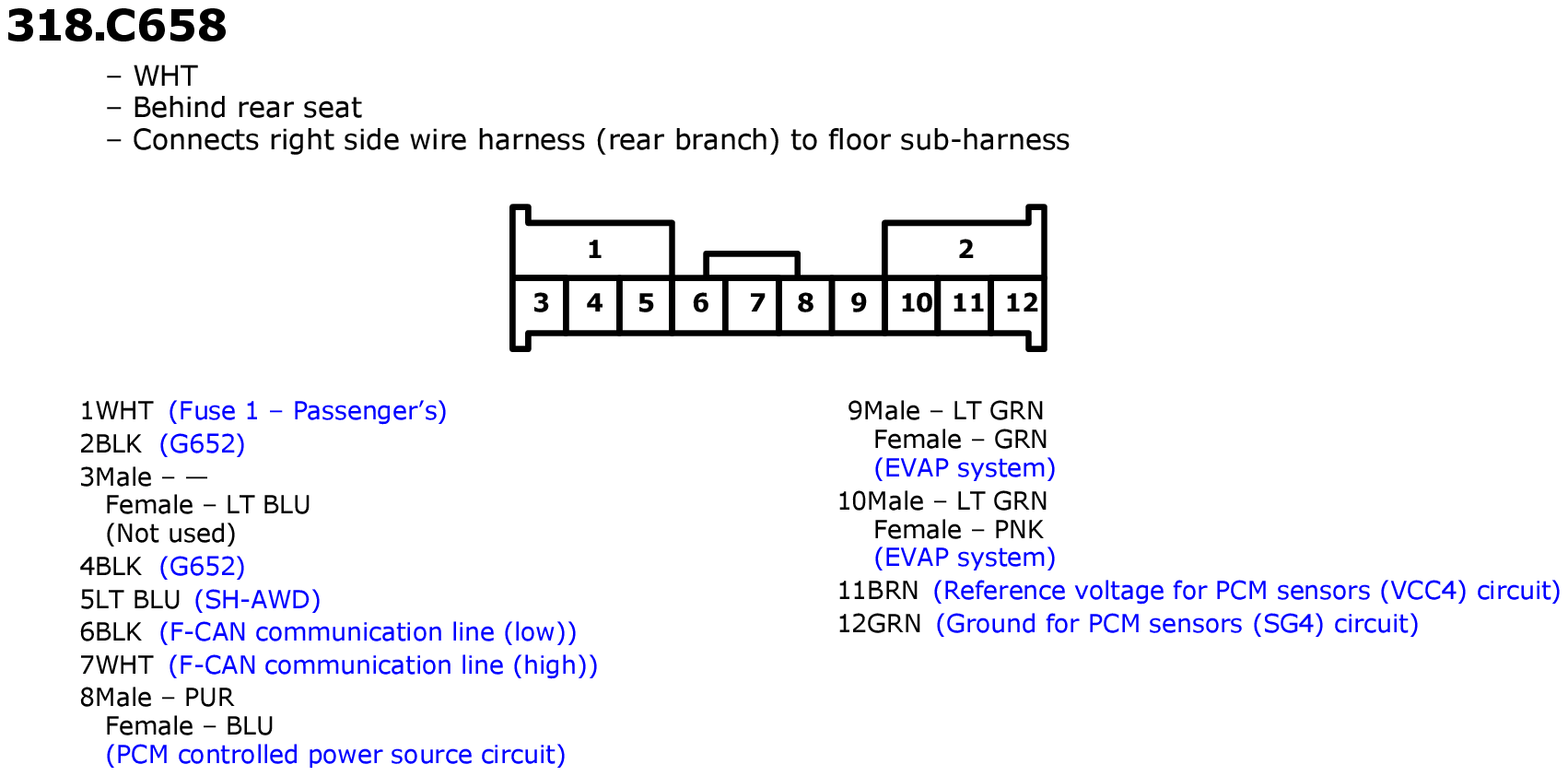

Fig 1: C658 Connector End View

GHHW9743

Courtesy of AMERICAN HONDA MOTOR CO., INC.
