C654 Connector End View

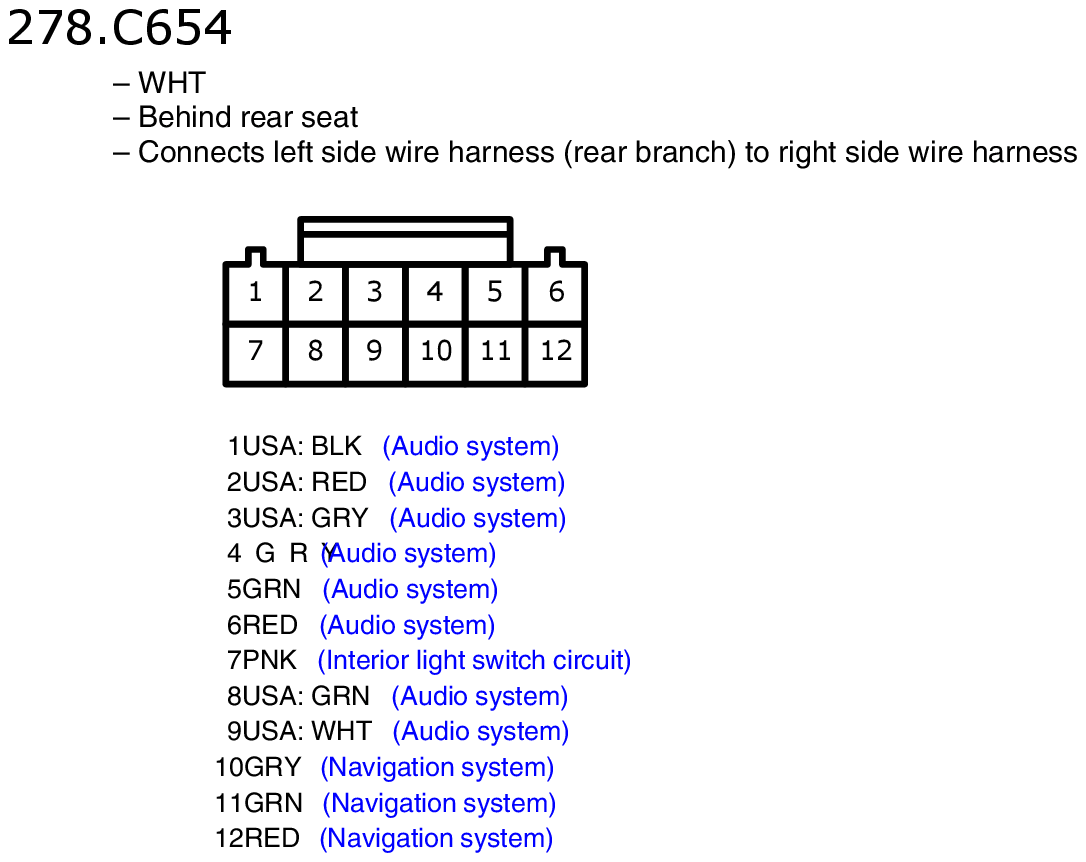

Fig 1: C654 Connector End View
GHHW9271Courtesy of AMERICAN HONDA MOTOR CO., INC.


Fig 1: C654 Connector End View
GHHW9833Courtesy of AMERICAN HONDA MOTOR CO., INC.

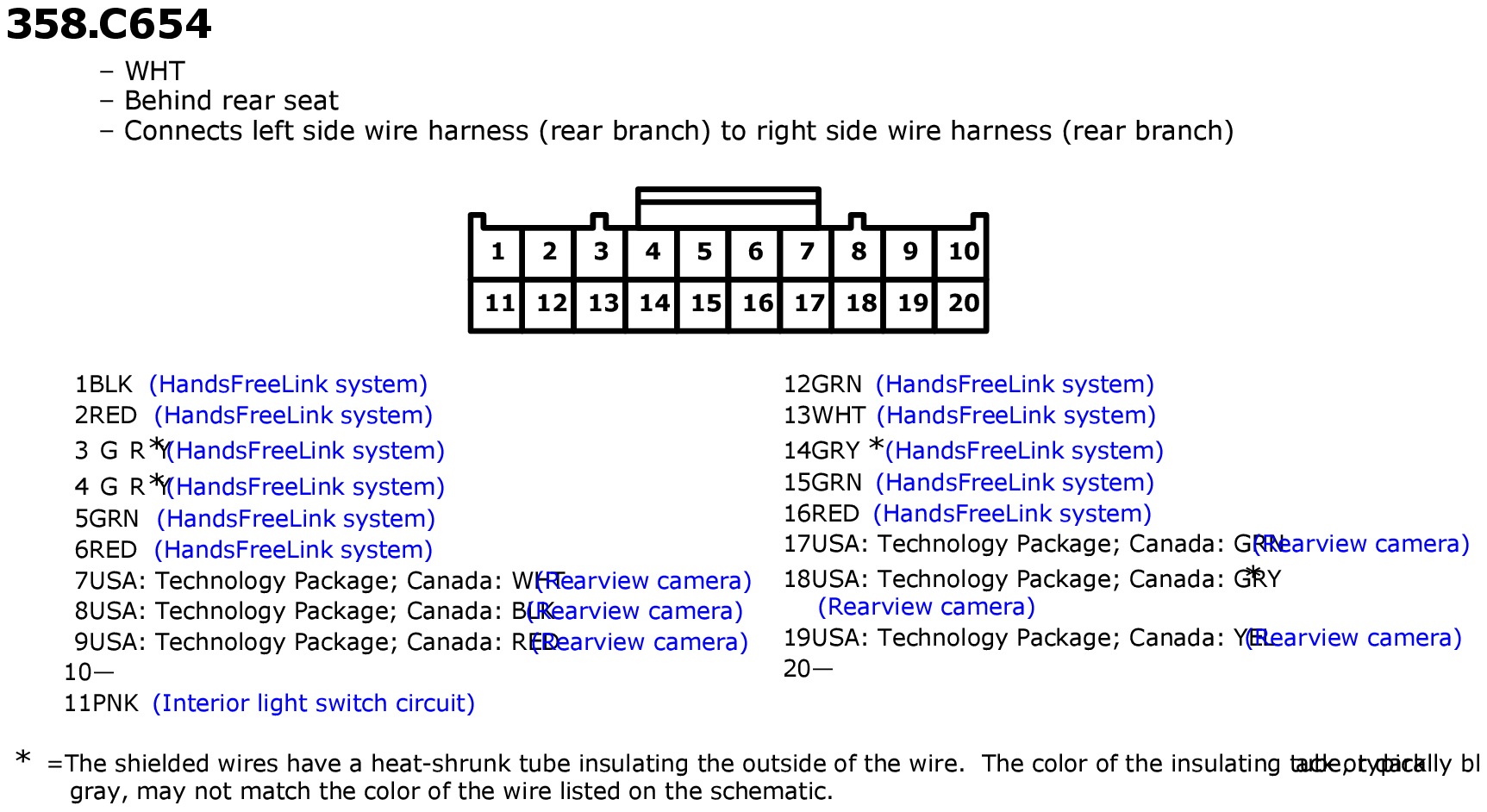

Fig 1: C654 Connector End View
GHHW9783Courtesy of AMERICAN HONDA MOTOR CO., INC.
