Active Noise Control Microphone, Front Connector End View

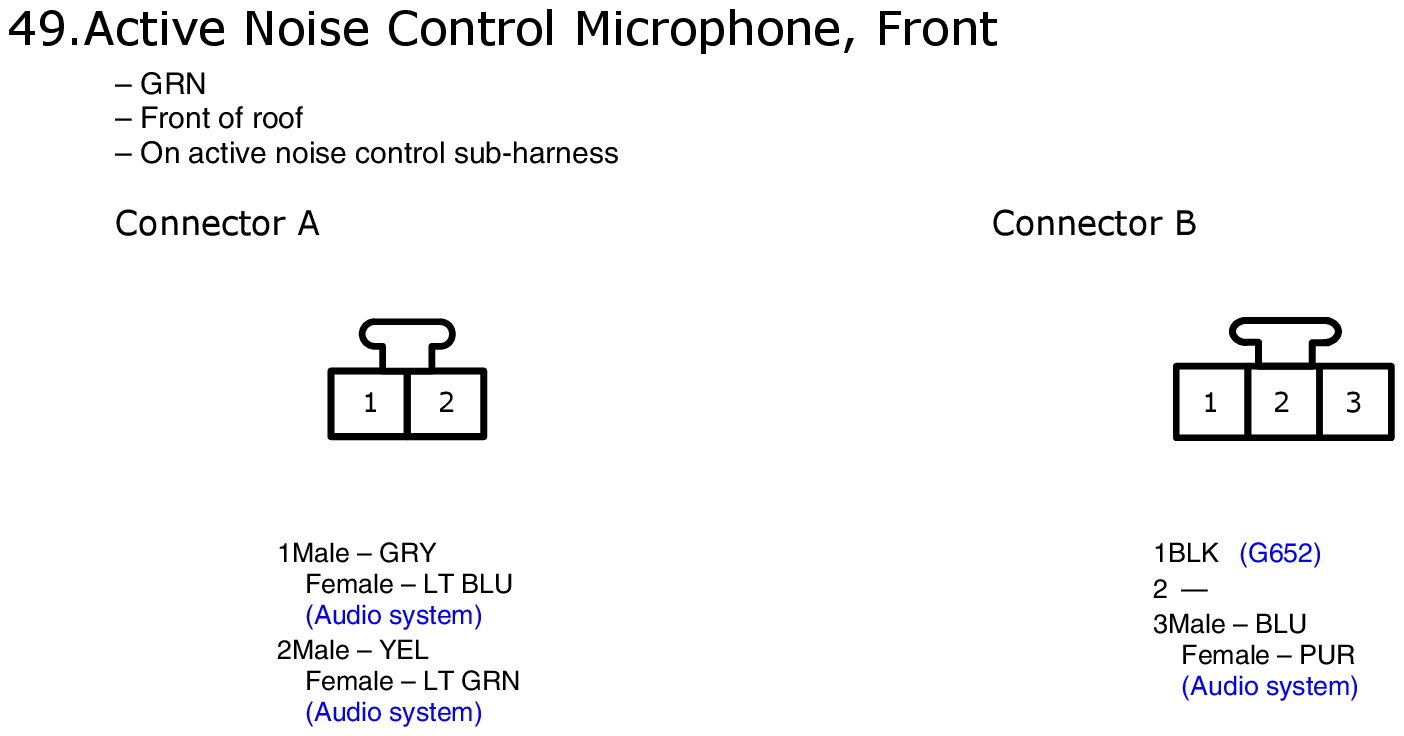

Fig 1: Active Noise Control Microphone, Front Connector End View

GHHW9042

Courtesy of AMERICAN HONDA MOTOR CO., INC.
