Body Specifications

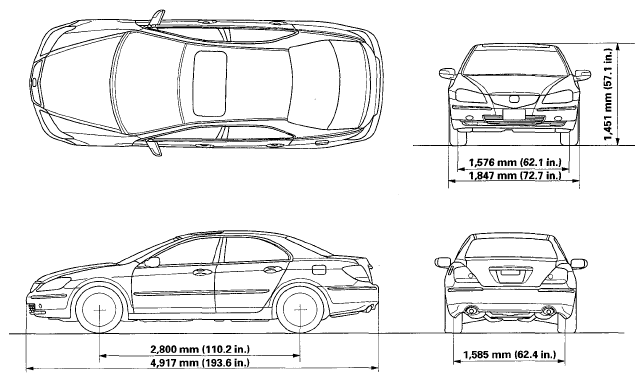

Fig 1: Identifying Body Dimensions

G05493770

Courtesy of AMERICAN HONDA MOTOR CO., INC.
