Engine Mount Replacement

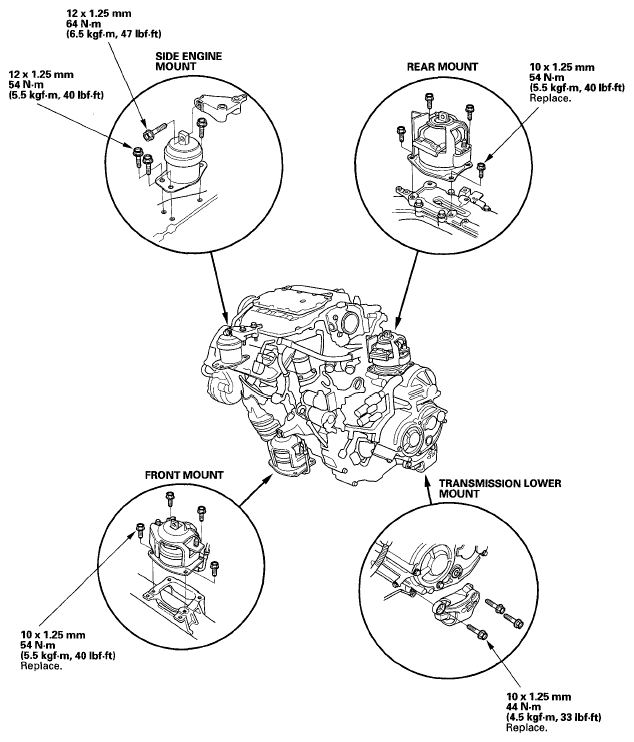

Fig 1: Engine Mounts With Torque Specifications

G05493948

Courtesy of AMERICAN HONDA MOTOR CO., INC.
