Frame Brace Replacement

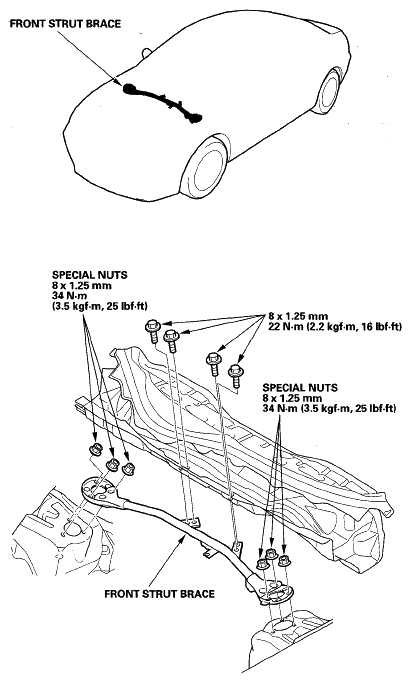

Fig 1: Frame Brace Replacement Components With Torque Specifications

G05496524

Courtesy of AMERICAN HONDA MOTOR CO., INC.
