Vacuum Hose Routing

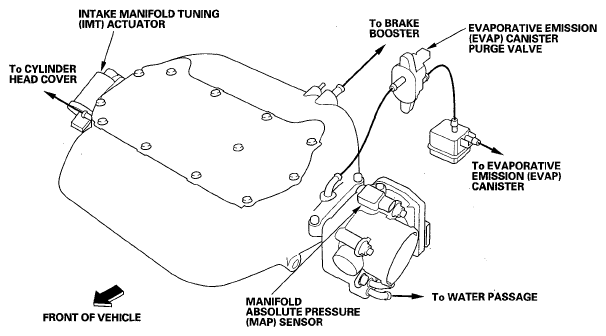

Fig 1: Identifying Vacuum Hose Routing Components

G05484910

Courtesy of AMERICAN HONDA MOTOR CO., INC.
