Circuit Diagram

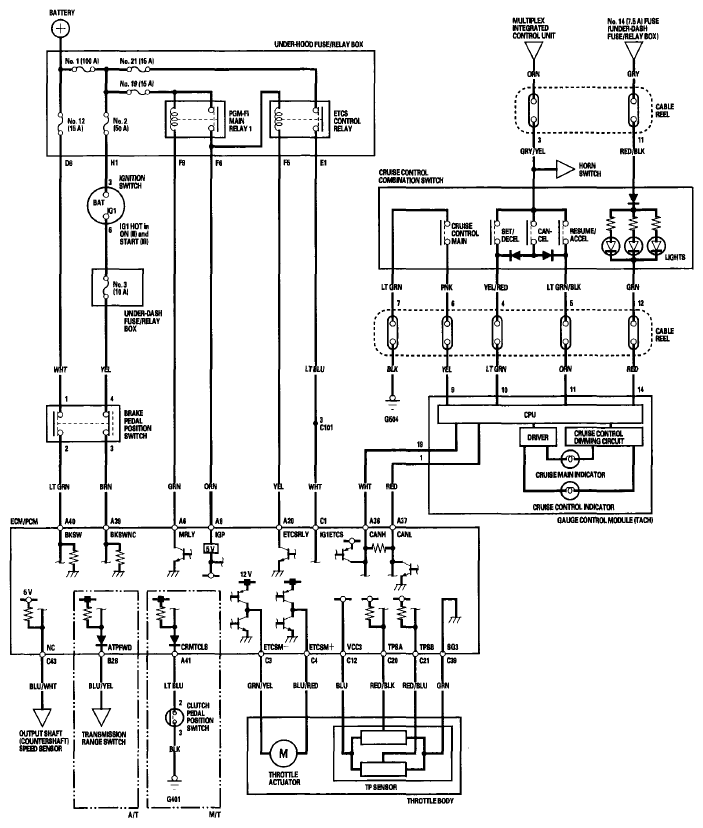

Fig 1: Cruise Control - Circuit Diagram

G06265474

Courtesy of AMERICAN HONDA MOTOR CO., INC.
