Navigation Unit Inputs and Outputs for Connector F (7P)

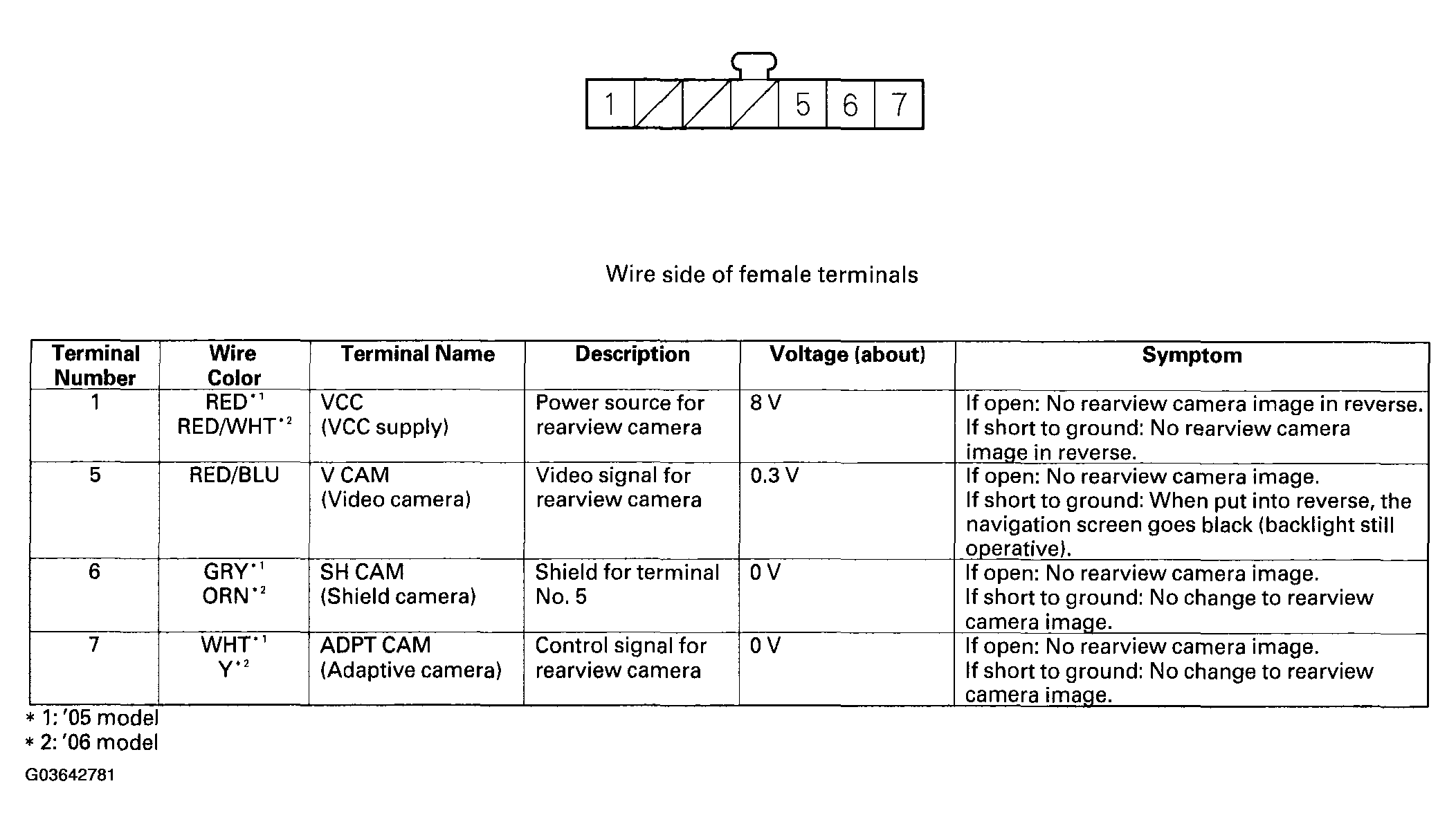

Fig 1: Identifying Navigation Unit Inputs And Outputs For Connector F (7P)

G03642781

Courtesy of AMERICAN HONDA MOTOR CO., INC.
