Trunk Latch Switch Connector End View

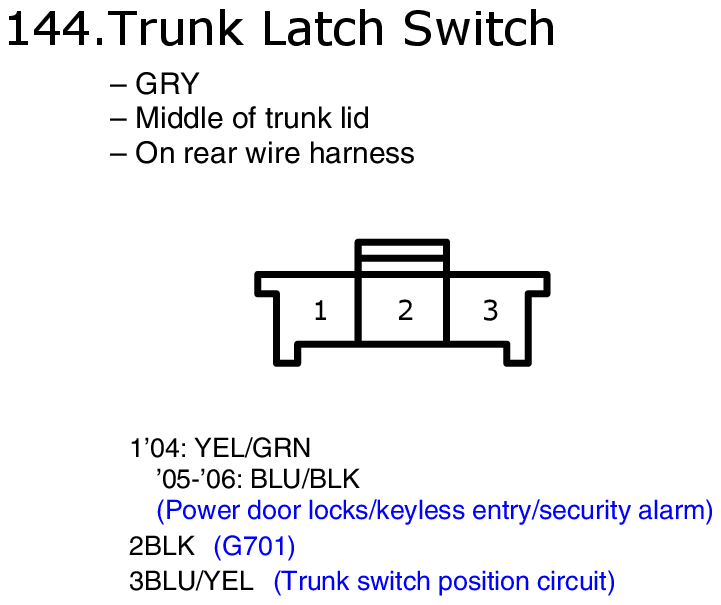

Fig 1: Trunk Latch Switch Connector End View

GHHW10910

Courtesy of AMERICAN HONDA MOTOR CO., INC.
