Shift Lock Relay (A/T) Connector End View

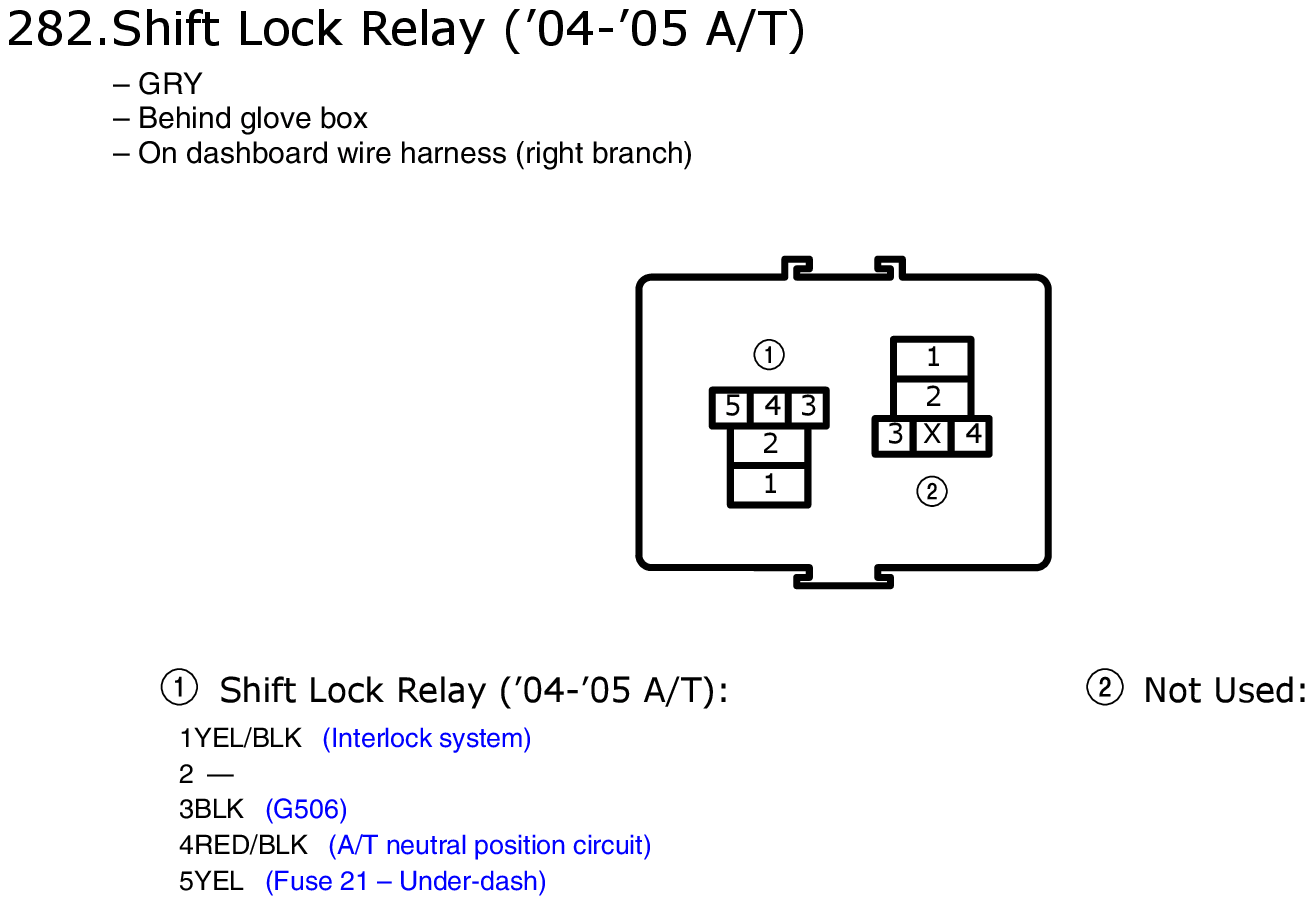

Fig 1: Shift Lock Relay (A/T) Connector End View

GHHW11048

Courtesy of AMERICAN HONDA MOTOR CO., INC.
