Front Passenger's Weight Sensor Unit Connector End View

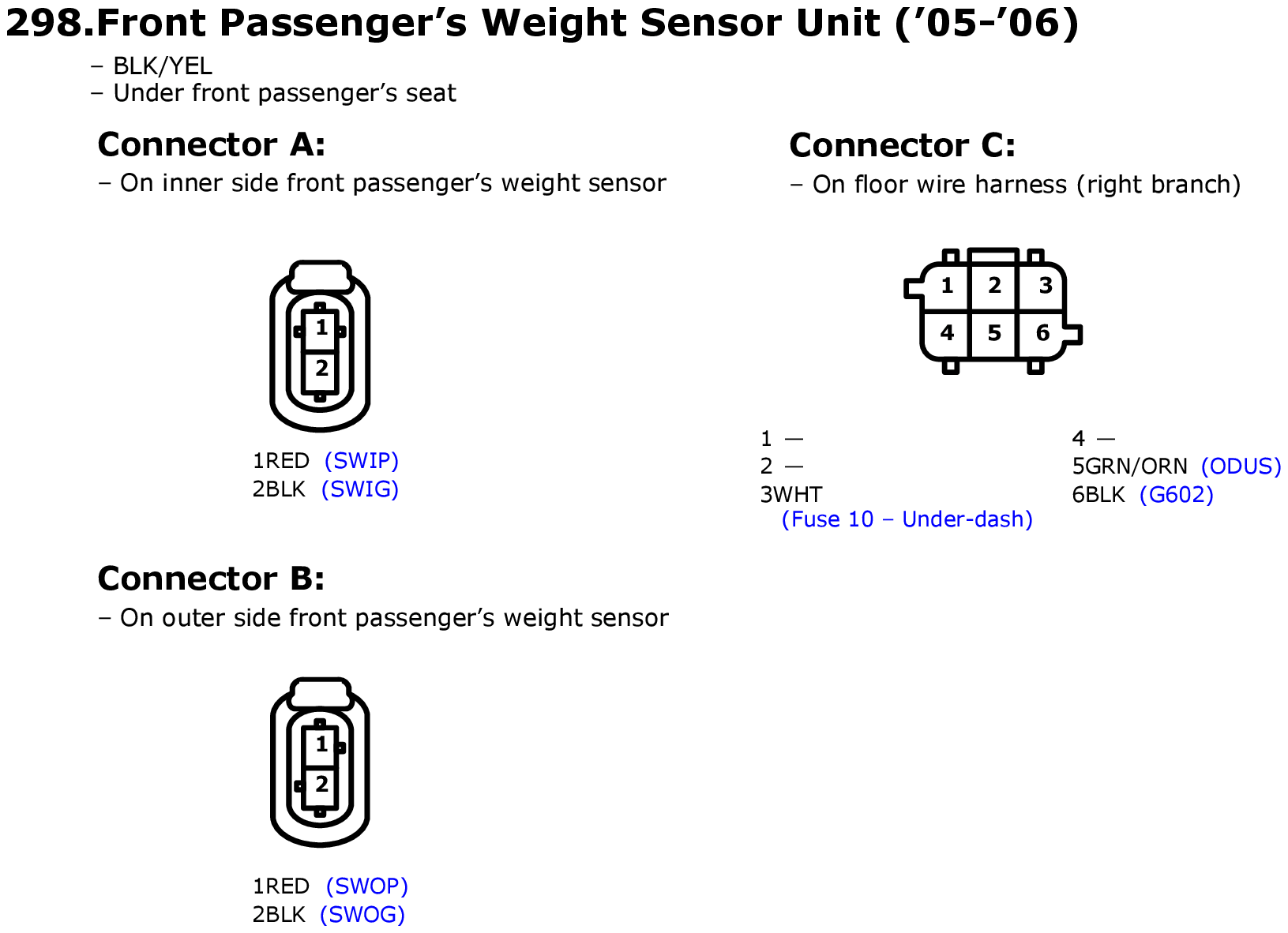

Fig 1: Front Passenger's Weight Sensor Unit Connector End View

GHHW11064

Courtesy of AMERICAN HONDA MOTOR CO., INC.
