DRL Relay/Fog Light Relay and Fan Control Relay Connector End View

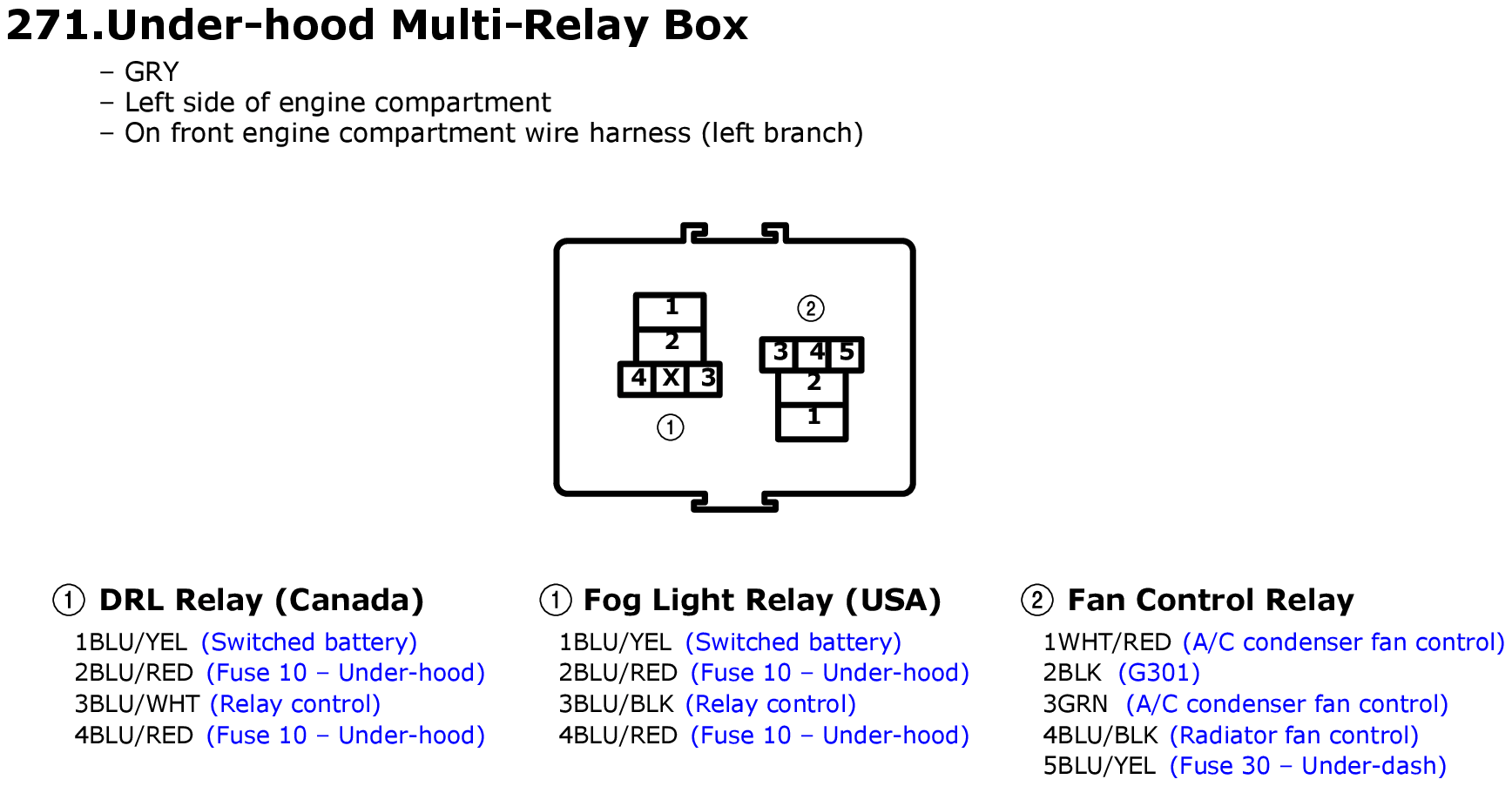

Fig 1: DRL Relay/Fog Light Relay and Fan Control Relay Connector End View

GHHW11037

Courtesy of AMERICAN HONDA MOTOR CO., INC.
