Vacuum Distribution

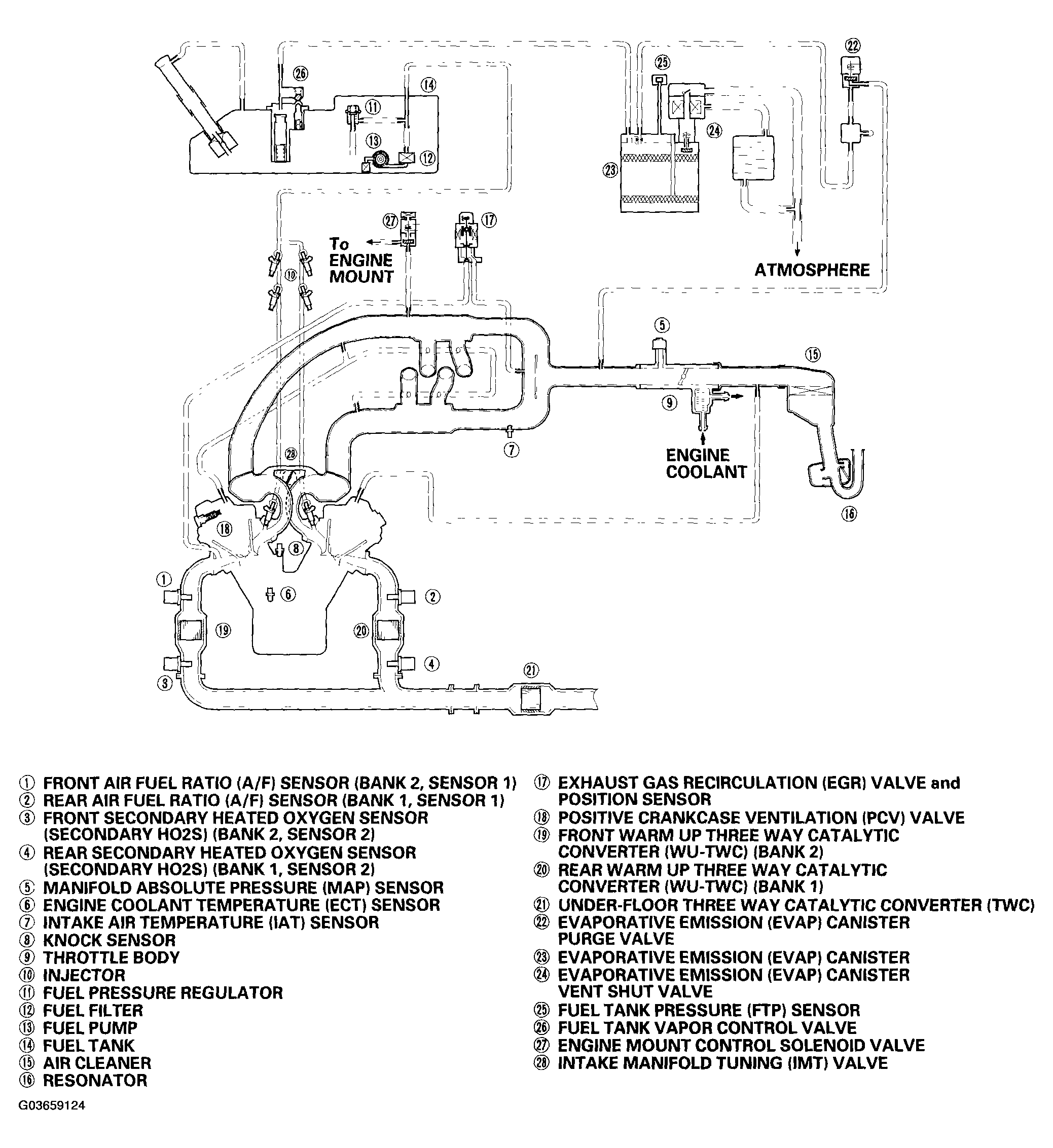

Fig 1: Identifying Vacuum Distribution

G03659124

Courtesy of AMERICAN HONDA MOTOR CO., INC.
