ECM/PCM Circuit Diagram - 2004-2005 Models

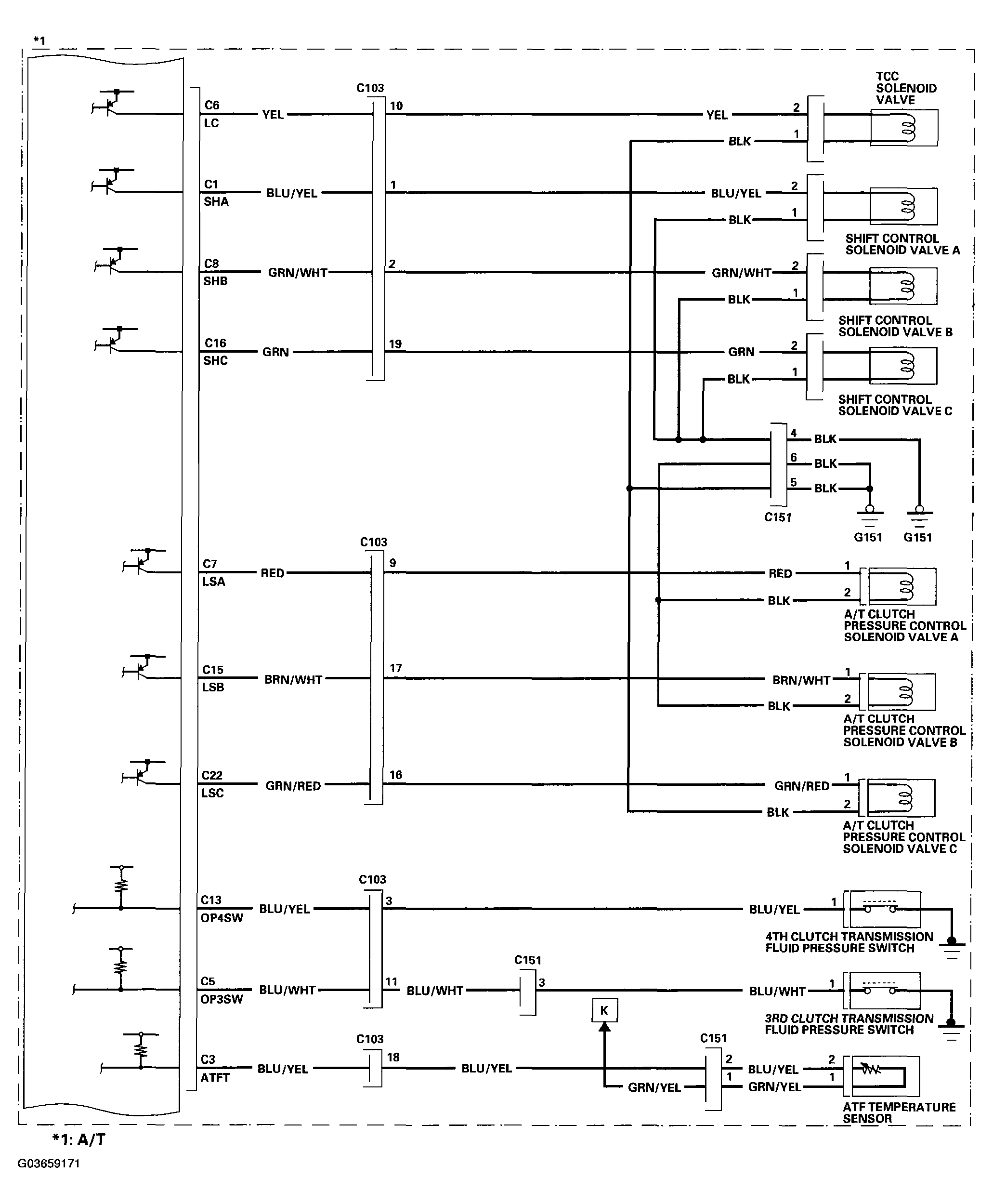

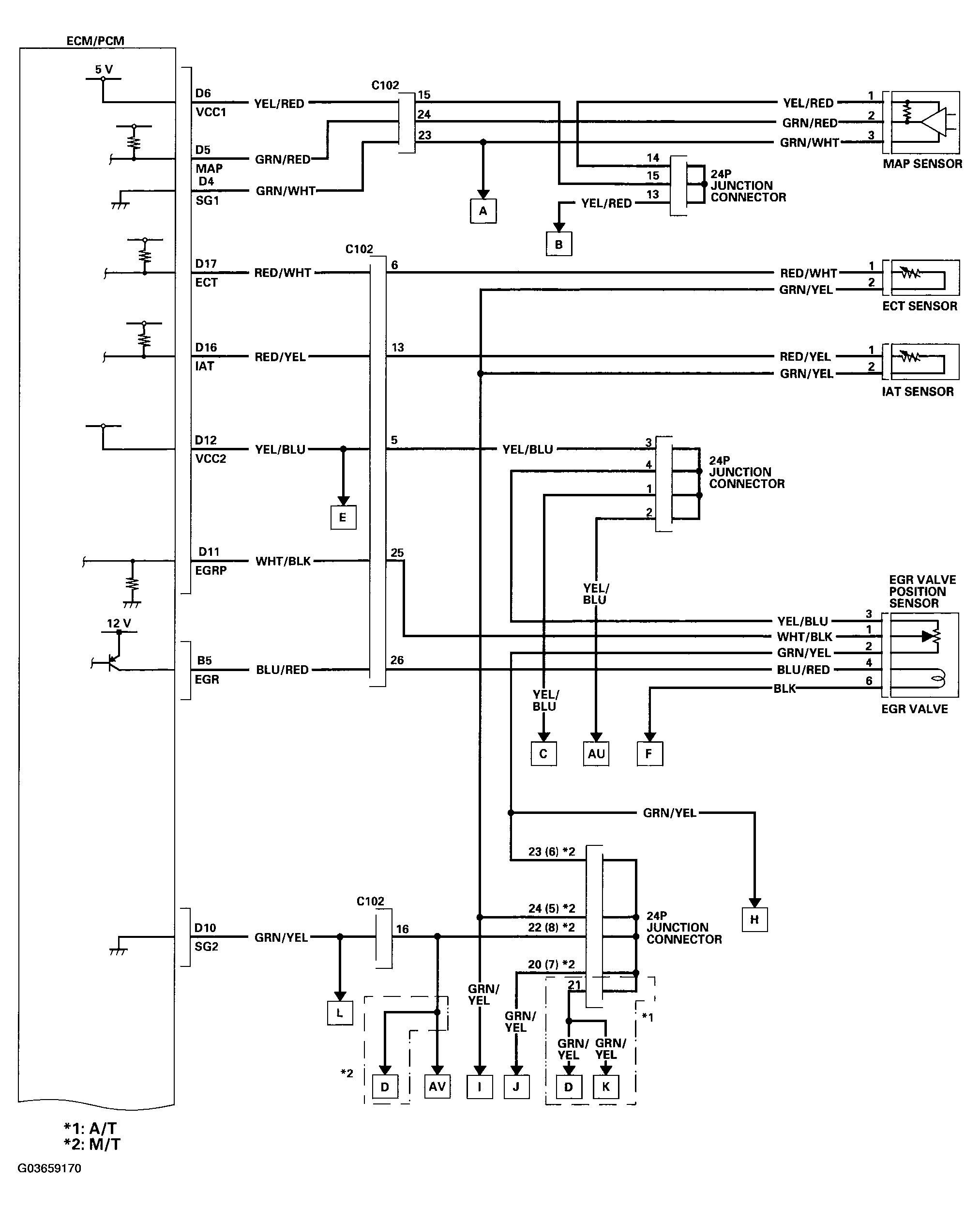

Fig 1: ECM/PCM Circuit Diagram - 2004-2005 Models (1 Of 11)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

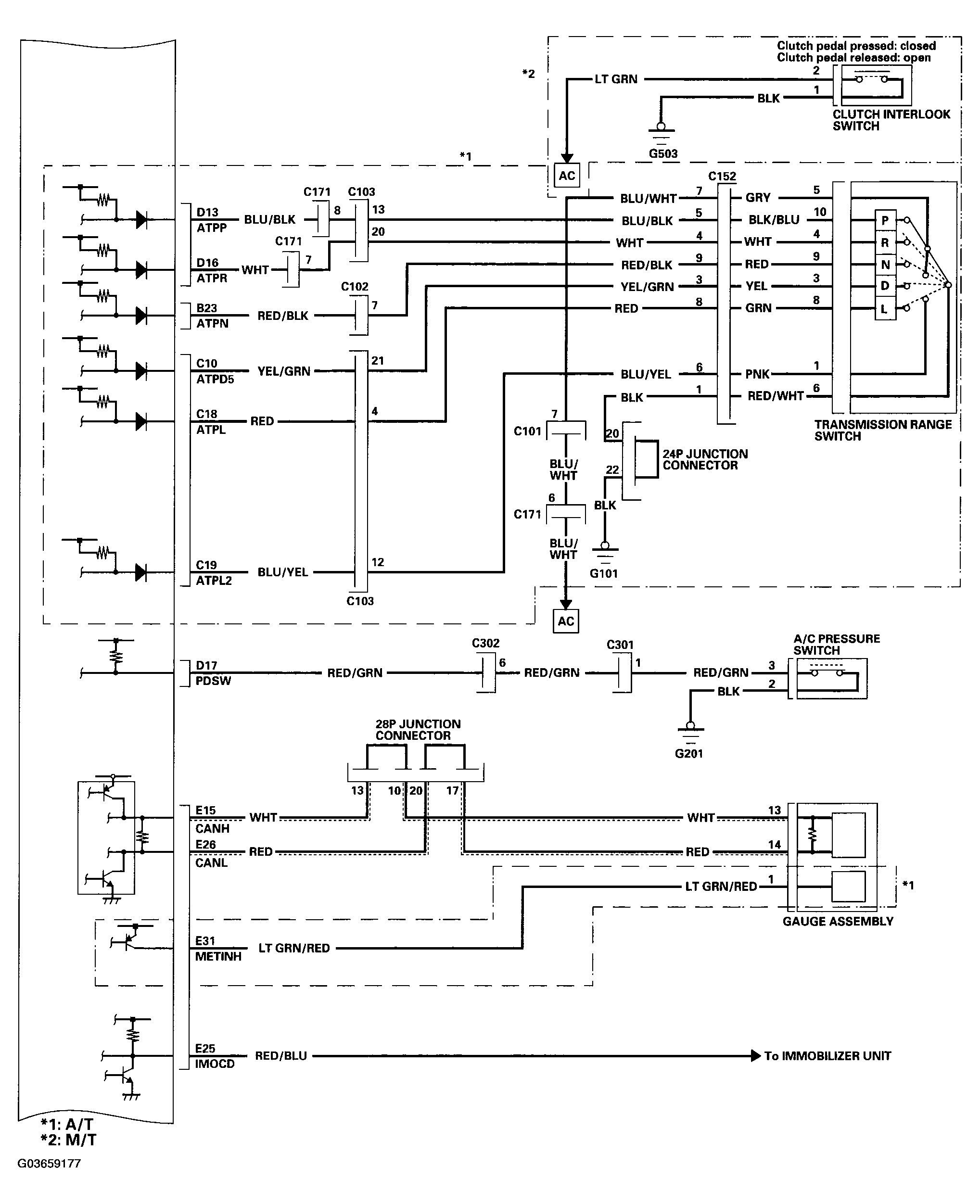

Fig 2: ECM/PCM Circuit Diagram - 2004-2005 Models (2 Of 11)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

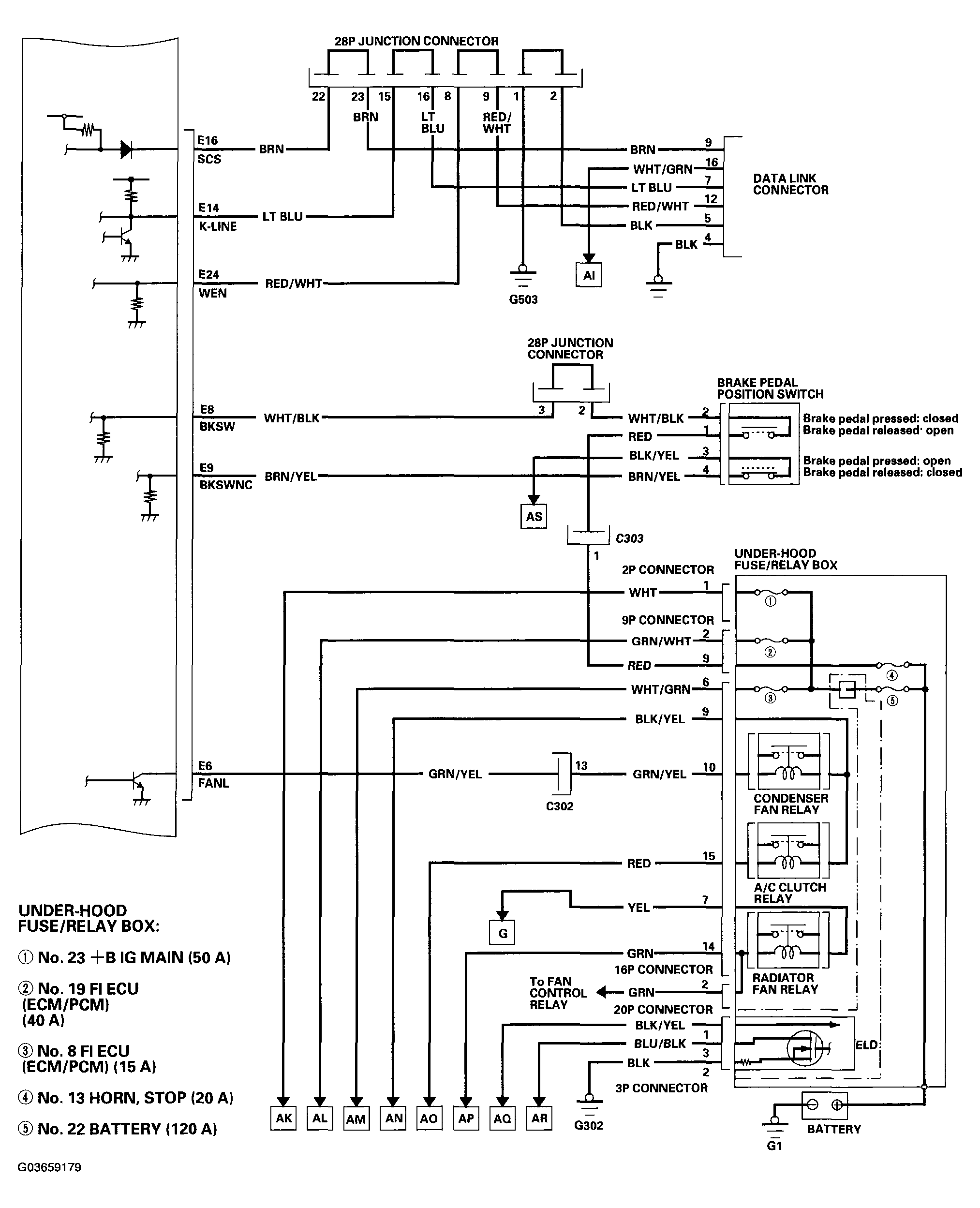

Fig 3: ECM/PCM Circuit Diagram - 2004-2005 Models (3 Of 11)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

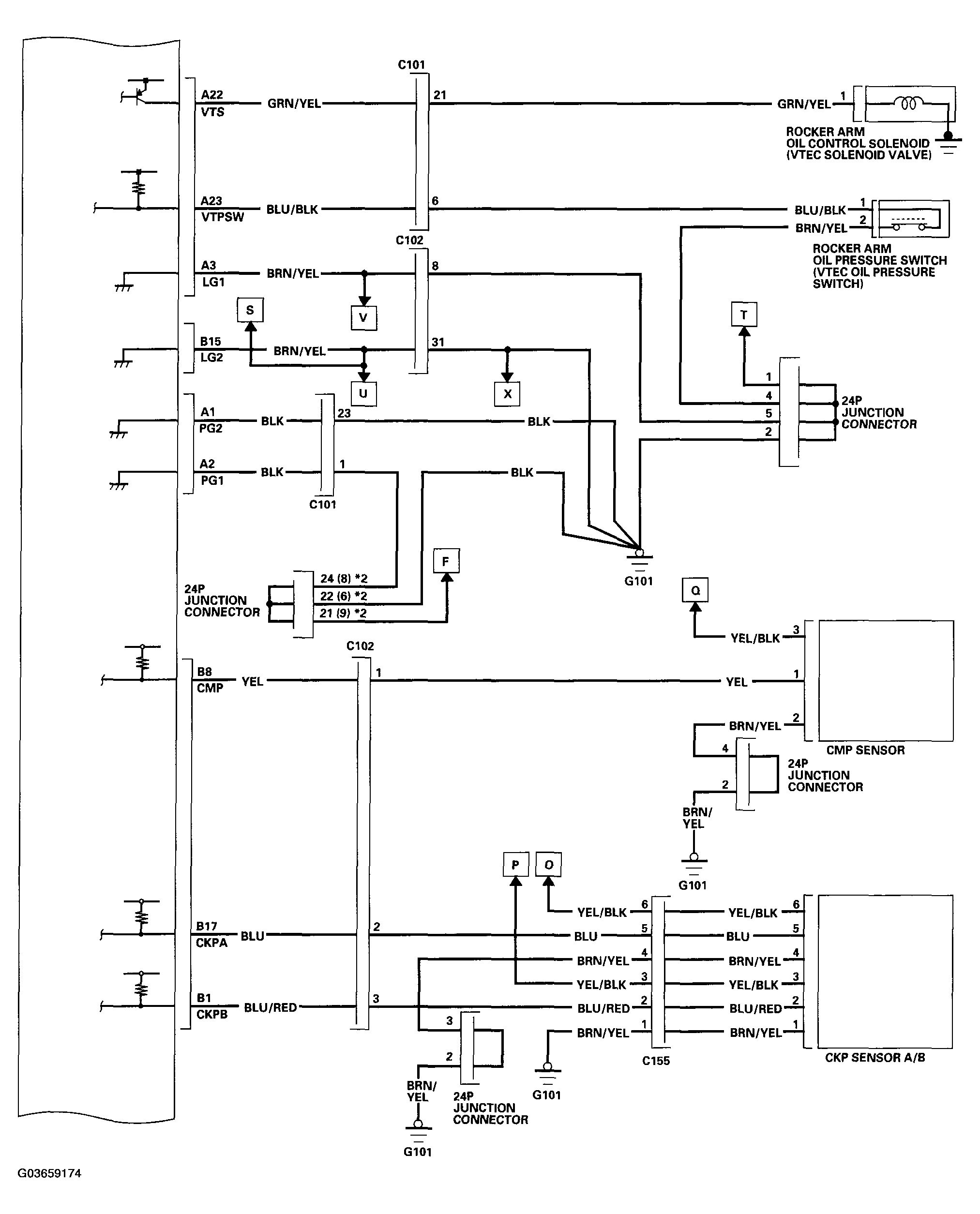

Fig 4: ECM/PCM Circuit Diagram - 2004-2005 Models (4 Of 11)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

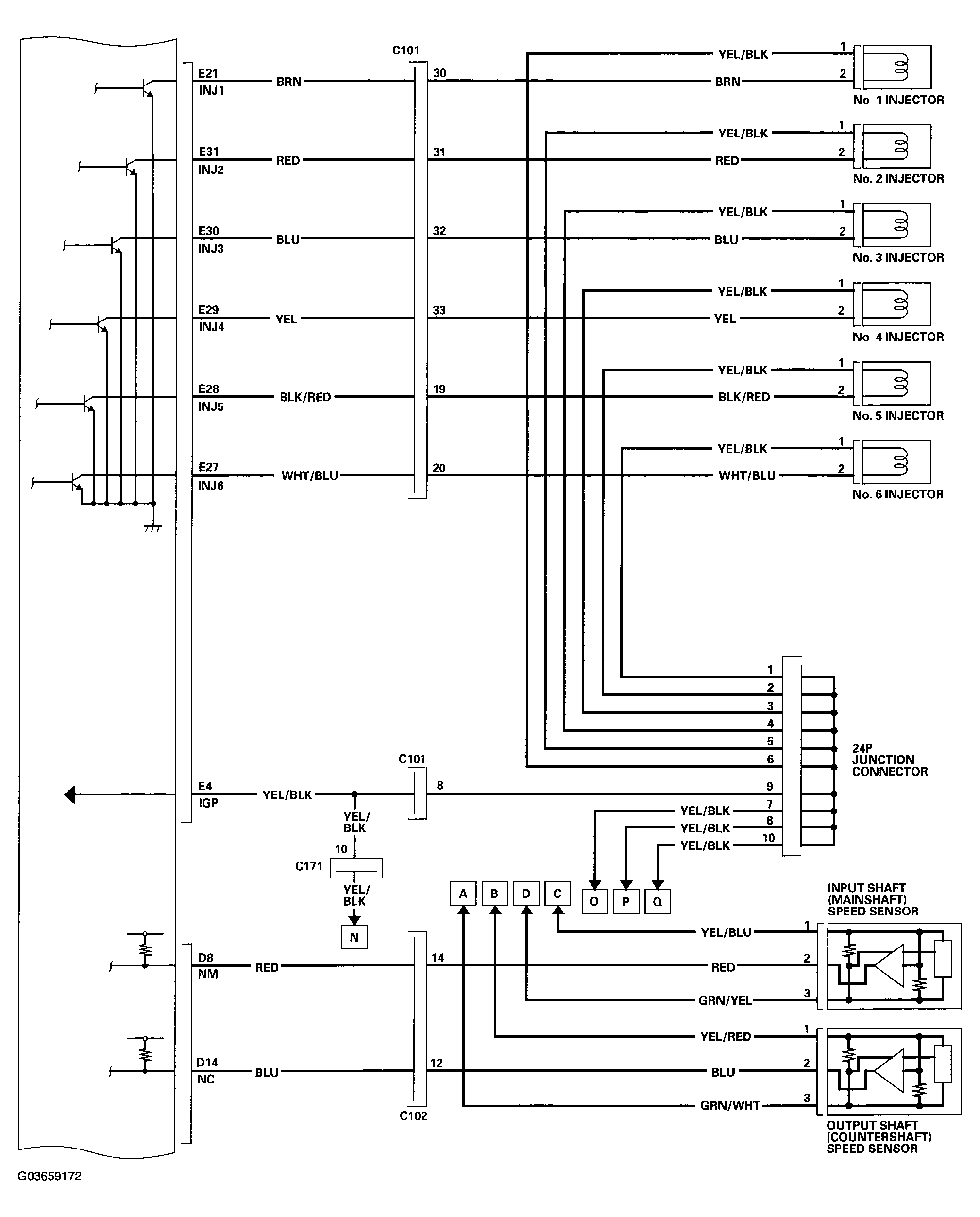

Fig 5: ECM/PCM Circuit Diagram - 2004-2005 Models (5 Of 11)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

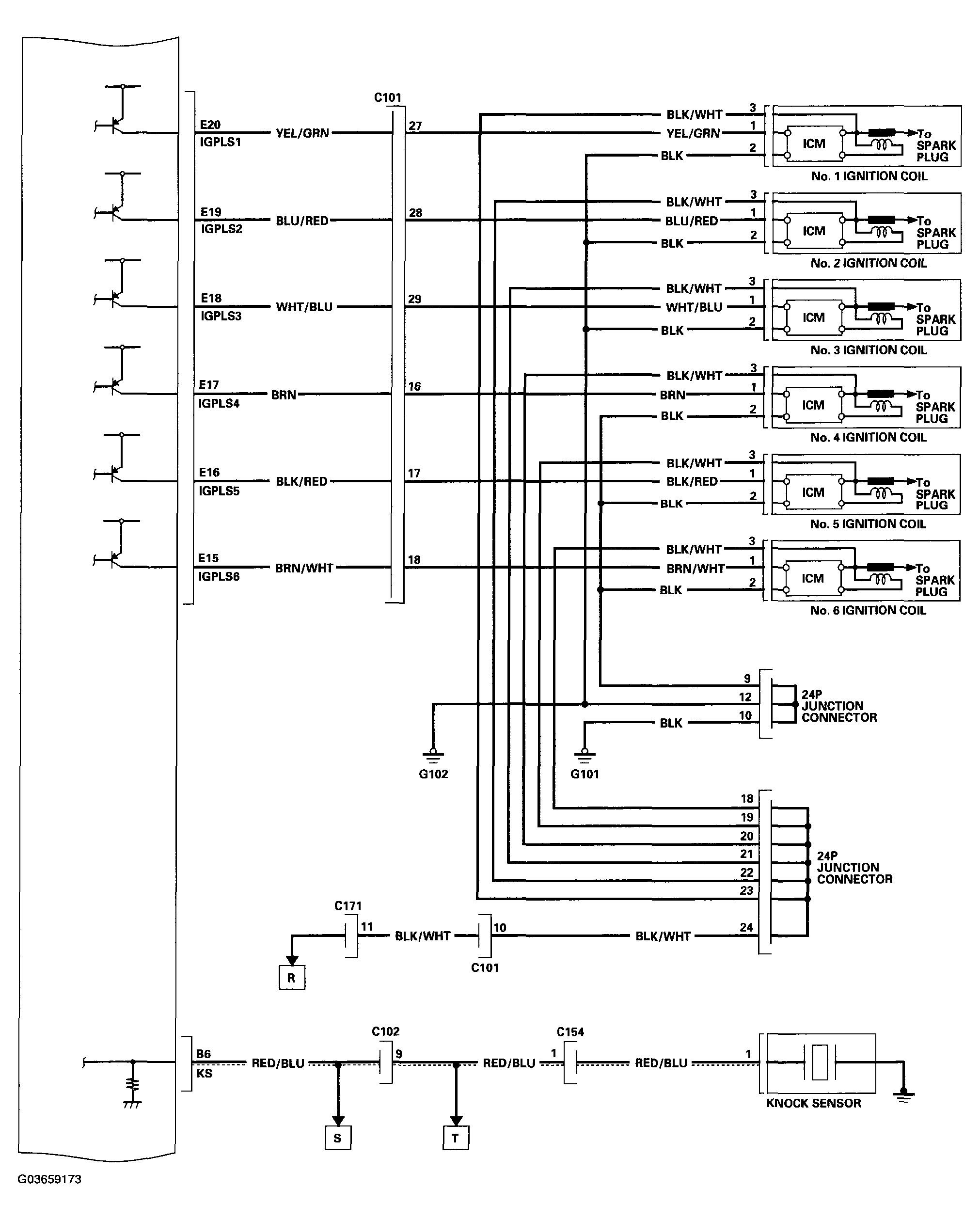

Fig 6: ECM/PCM Circuit Diagram - 2004-2005 Models (6 Of 11)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

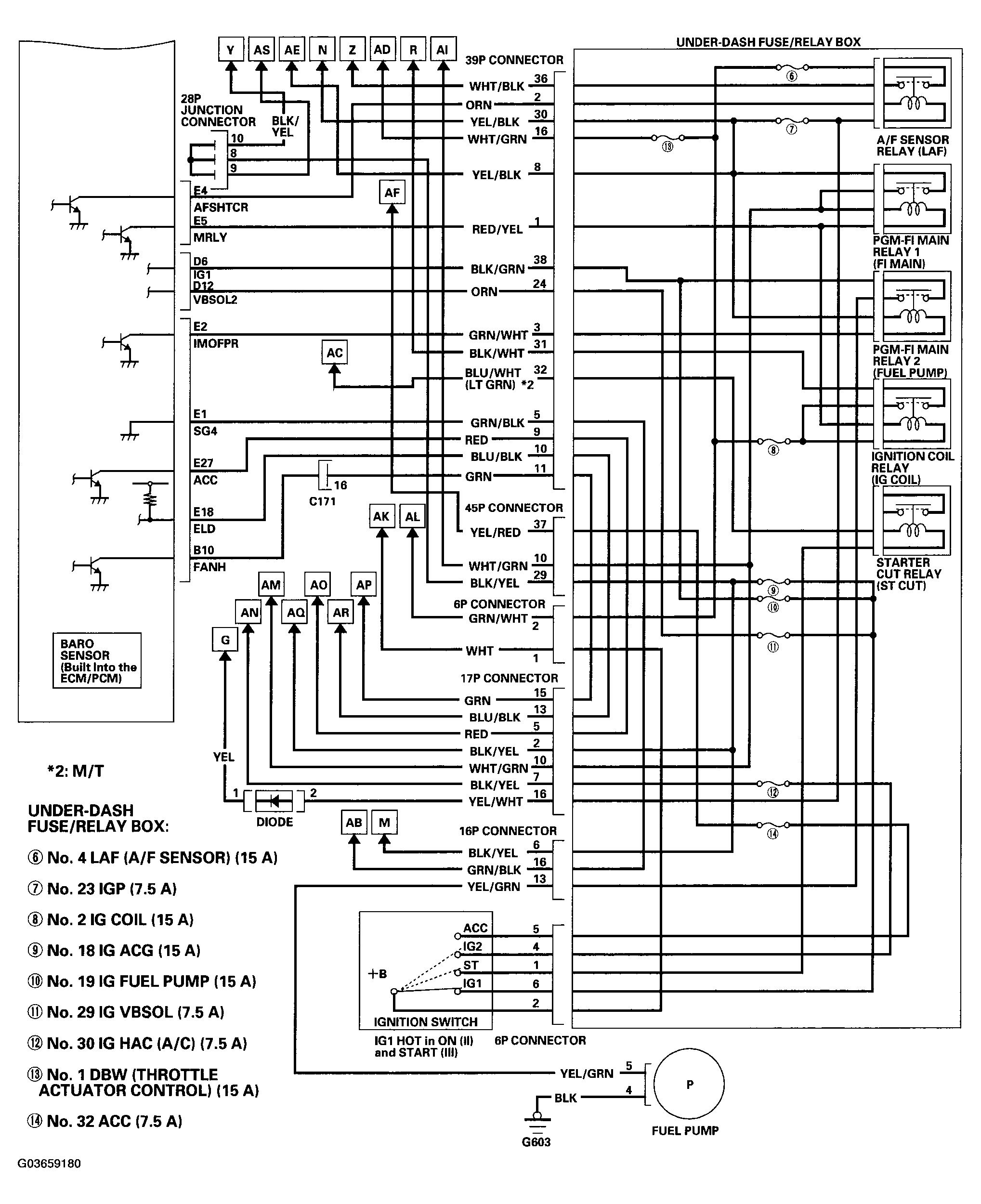

Fig 7: ECM/PCM Circuit Diagram - 2004-2005 Models (7 Of 11)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

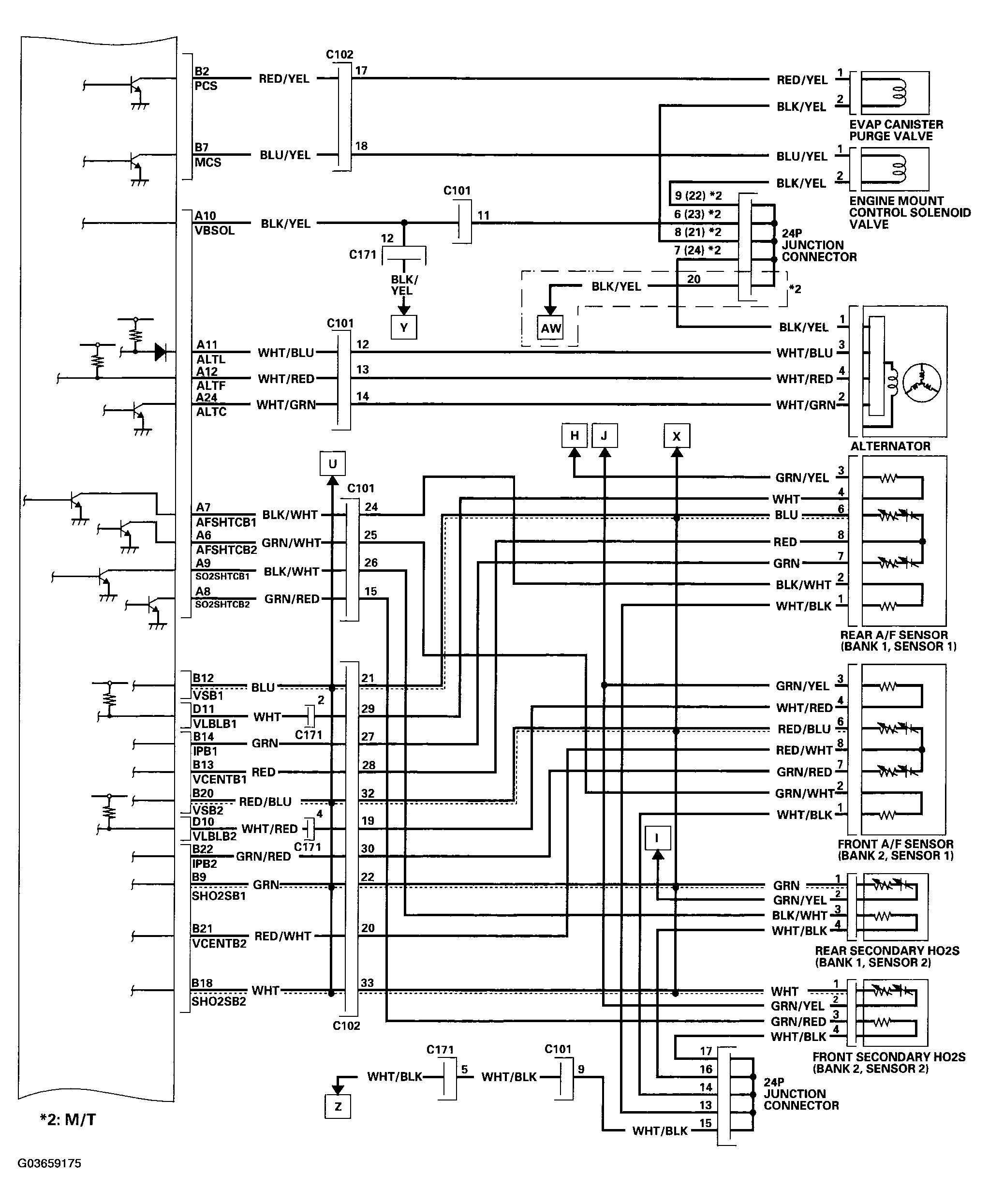

Fig 8: ECM/PCM Circuit Diagram - 2004-2005 Models (8 Of 11)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

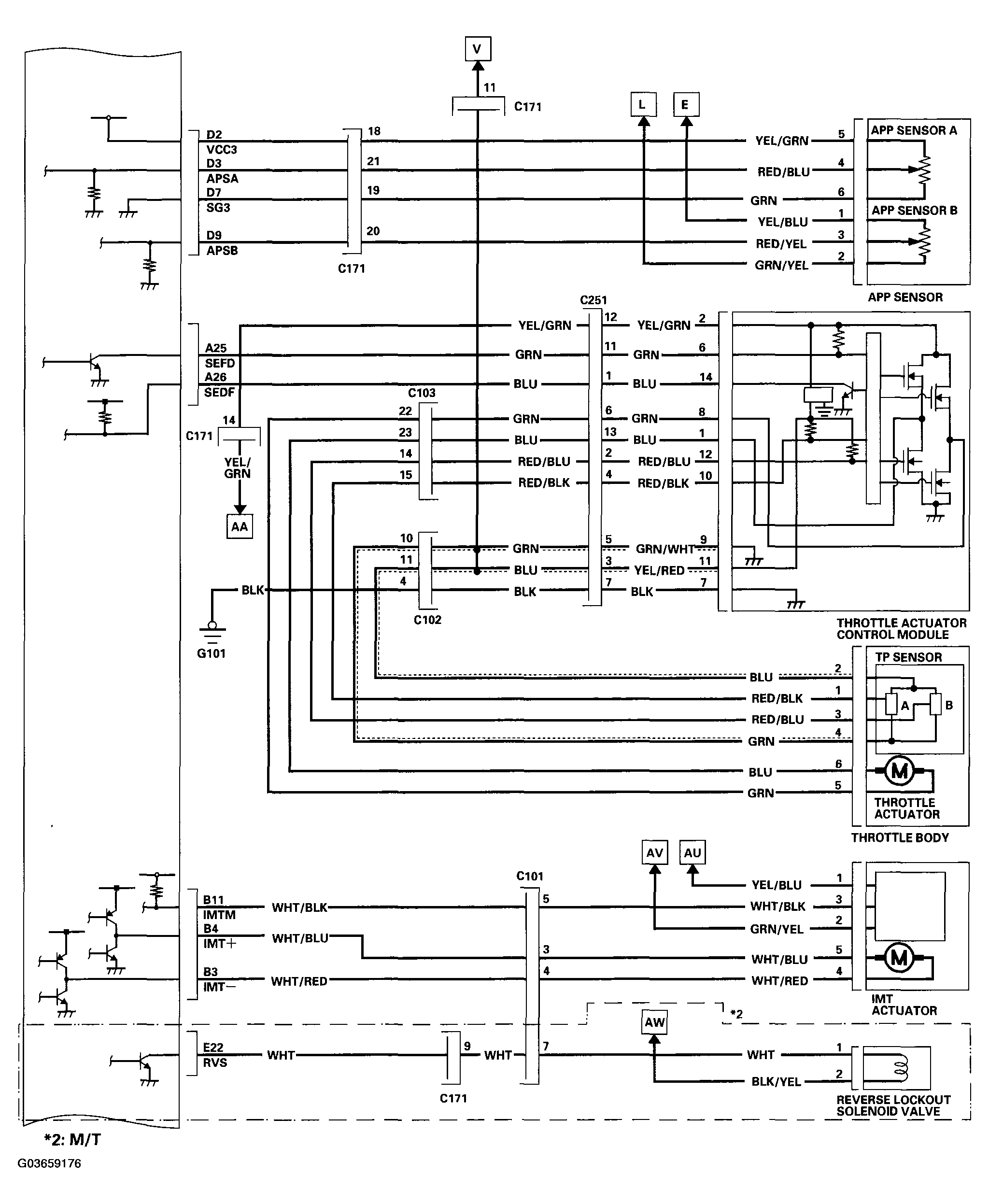

Fig 9: ECM/PCM Circuit Diagram - 2004-2005 Models (9 Of 11)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

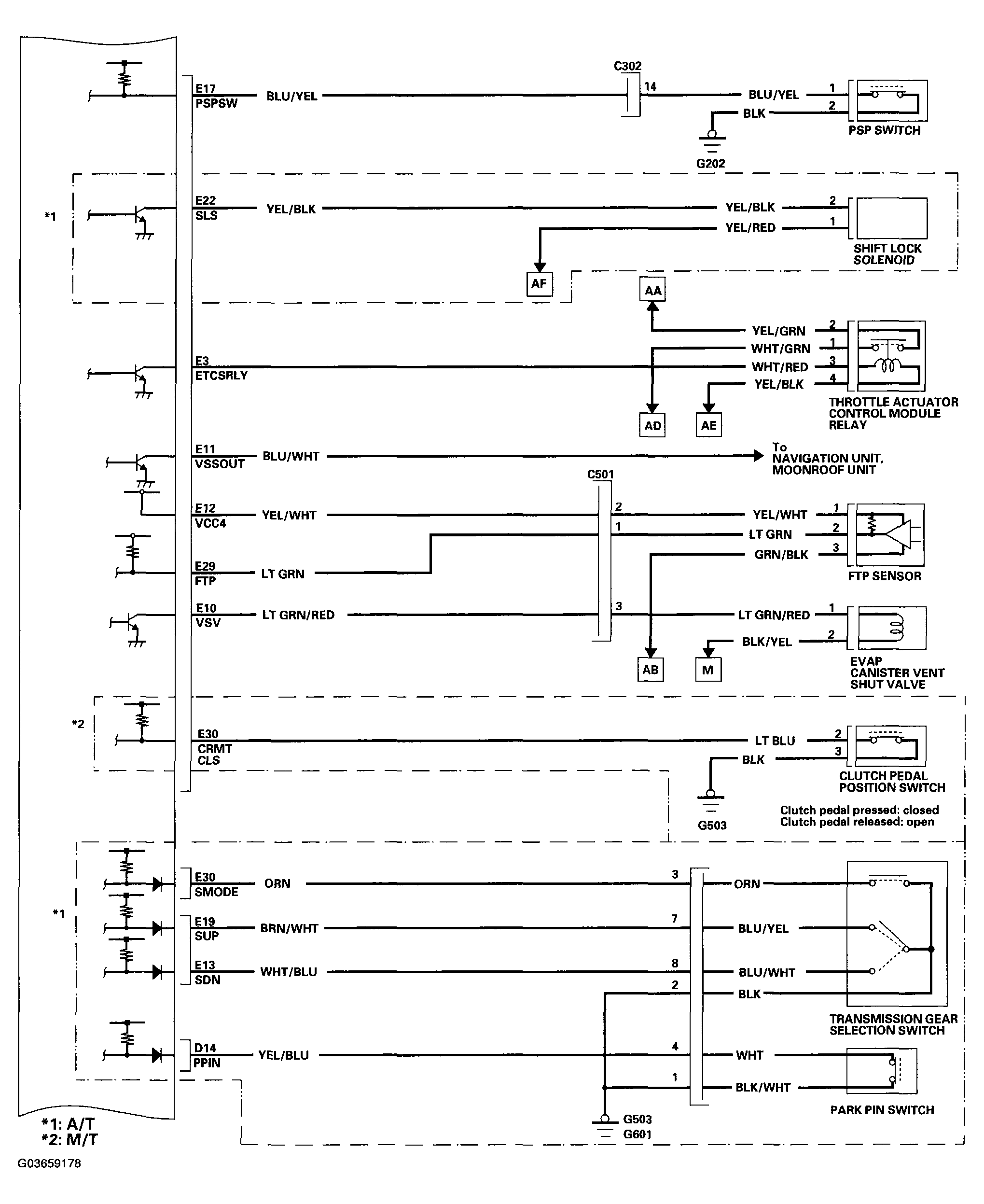

Fig 10: ECM/PCM Circuit Diagram - 2004-2005 Models (10 Of 11)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 11: ECM/PCM Circuit Diagram - 2004-2005 Models (11 Of 11)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
