B-CAN System Link

B-CAN (Body Controller Area Network) communication moves at a slower speed for convenience related items, and for other functions.

• If the diagnostic screen below reads NG, then diagnostic trouble codes (DTCs) for the B-CAN can be retrieved with the HDS (Honda Diagnostic System). The data displayed in the ID boxes is irrelevant.
• For more details on troubleshooting the B-CAN, refer to the multiplex system.

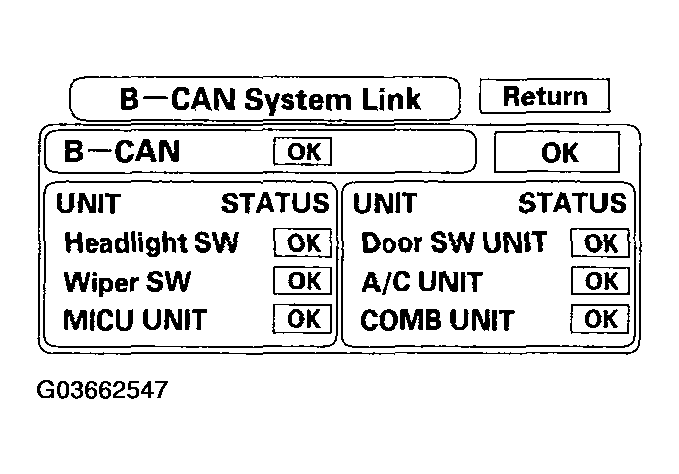

  Fig 1: Identifying B-CAN System Screen

  Courtesy of AMERICAN HONDA MOTOR CO., INC.
