Cruise Control Combination Switch Illumination Bulb Replacement

SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ) and precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before performing repairs or service.

1. Remove the driver's airbag (see DRIVER'S AIRBAG REPLACEMENT ).
2. Remove the two screws, then disconnect the connector, and remove the switch.

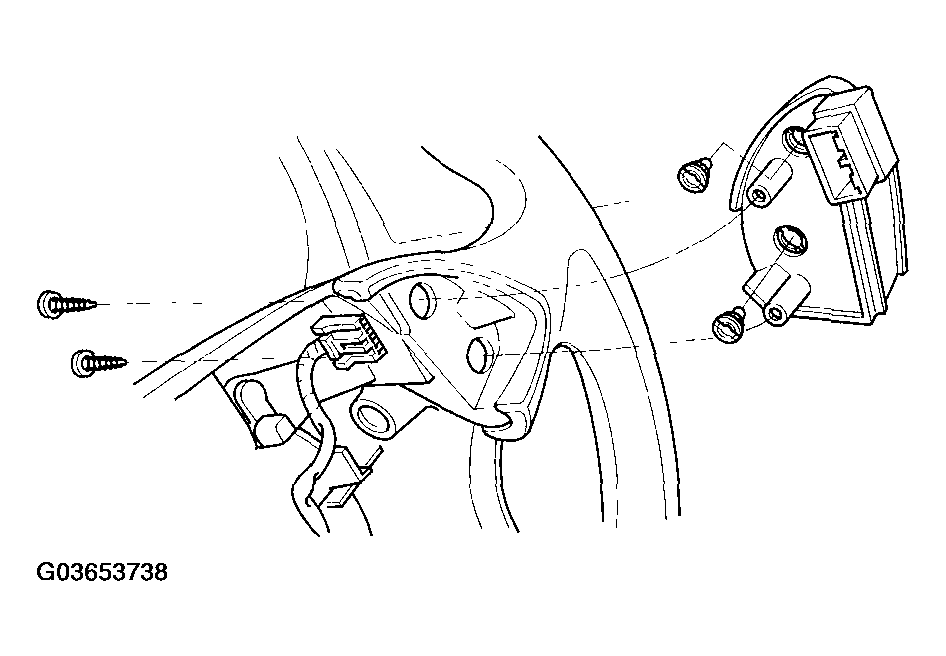

   Fig 1: Removing Switch

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Replace the illumination bulb.
4. Install in the reverse order of removal.
