Home >> Acura >> 2004 >> TL Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission >> System Description >> Shift Lock/Reverse Lock Mechanism >> Circuit Diagram - PCM A/T Control System - 2006 Model

Circuit Diagram - PCM A/T Control System - 2006 Model

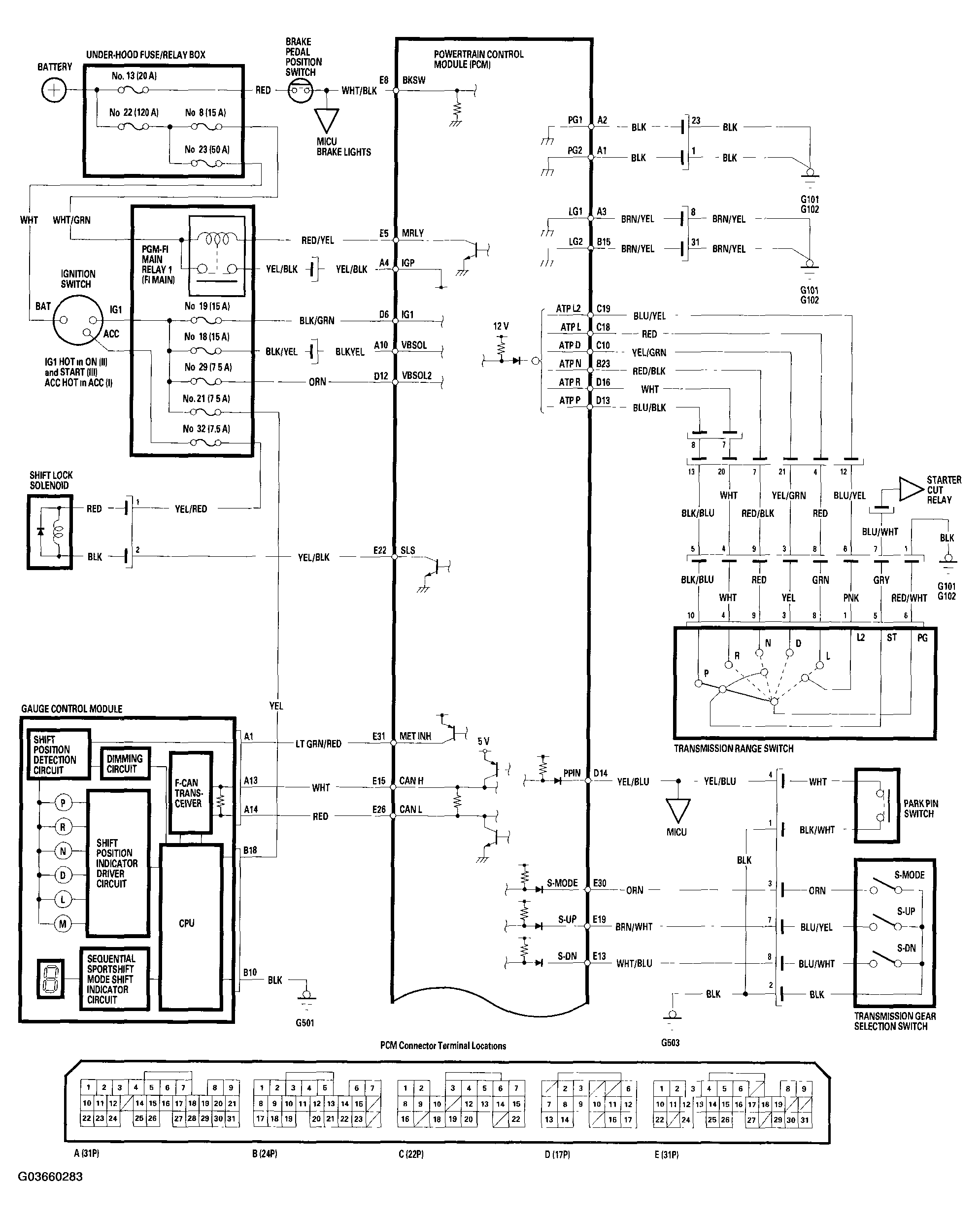

Fig 1: Circuit Diagram - PCM A/T Control System - 2006 Model (1 Of 2)
G03660283Courtesy of AMERICAN HONDA MOTOR CO., INC.

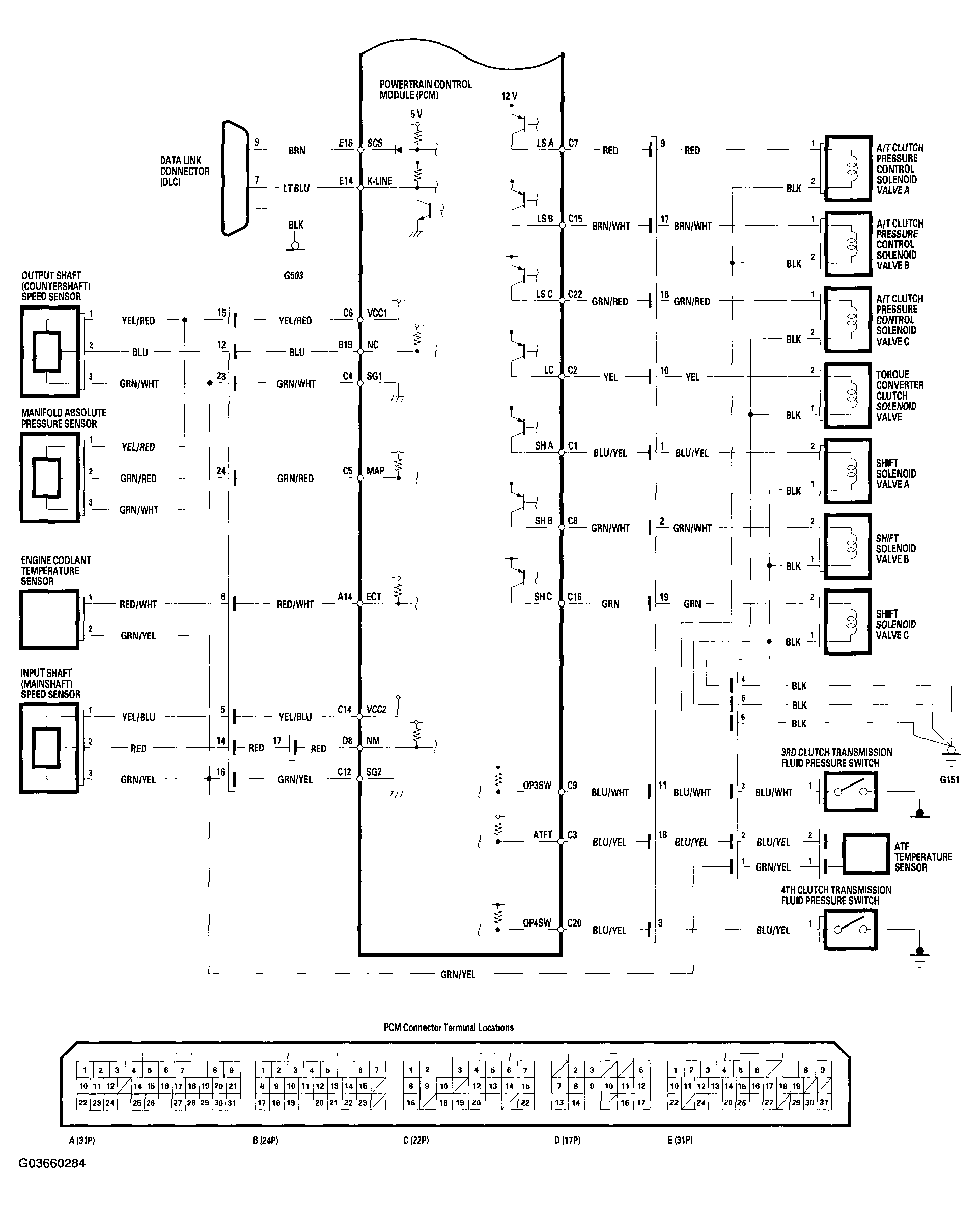

Fig 2: Circuit Diagram - PCM A/T Control System - 2006 Model (2 Of 2)
G03660284Courtesy of AMERICAN HONDA MOTOR CO., INC.
