Circuit Diagram - PCM A/T Control System - 2004-2005 Models

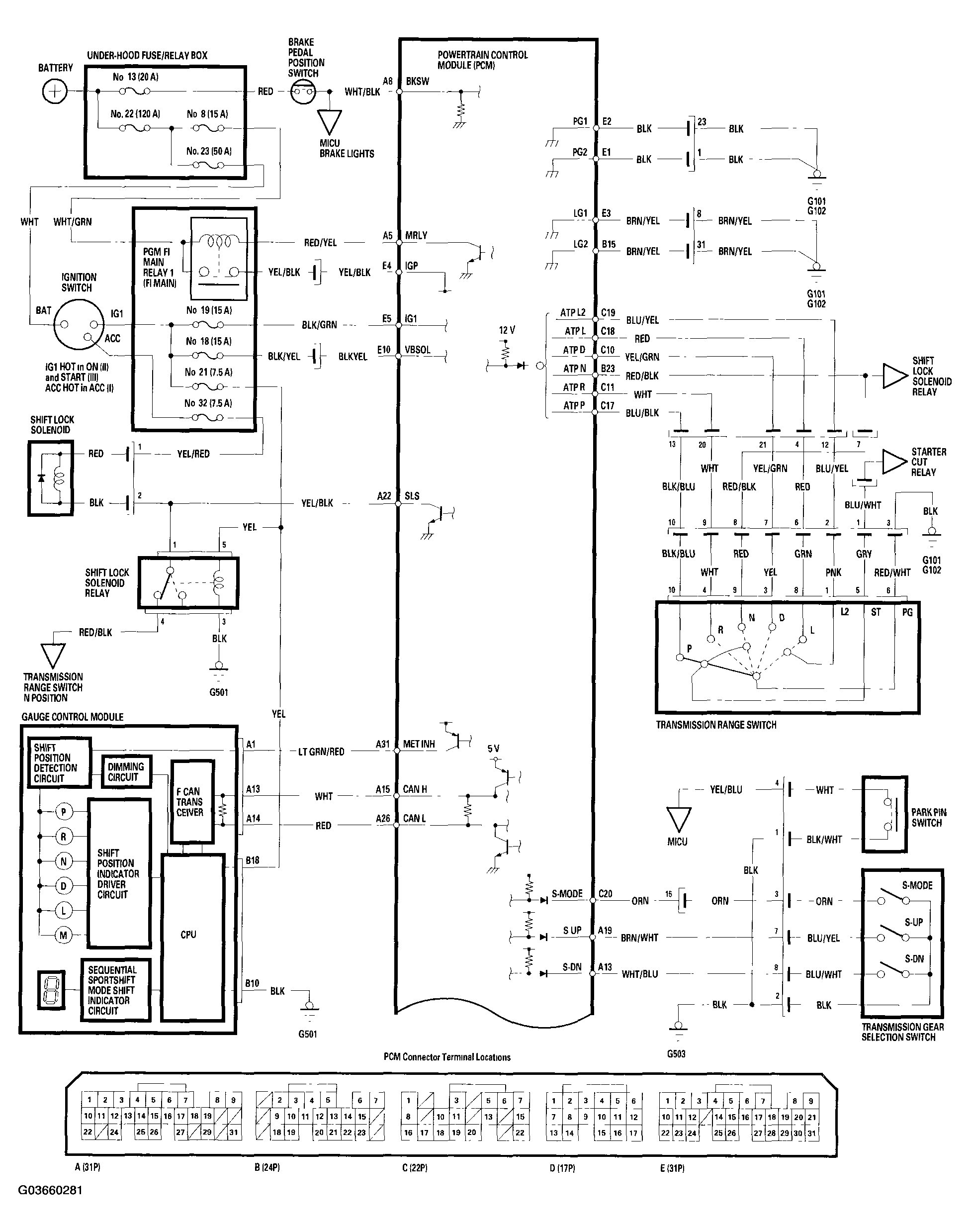

Fig 1: Circuit Diagram - PCM A/T Control System - 2004-2005 Models (1 Of 2)
G03660281Courtesy of AMERICAN HONDA MOTOR CO., INC.

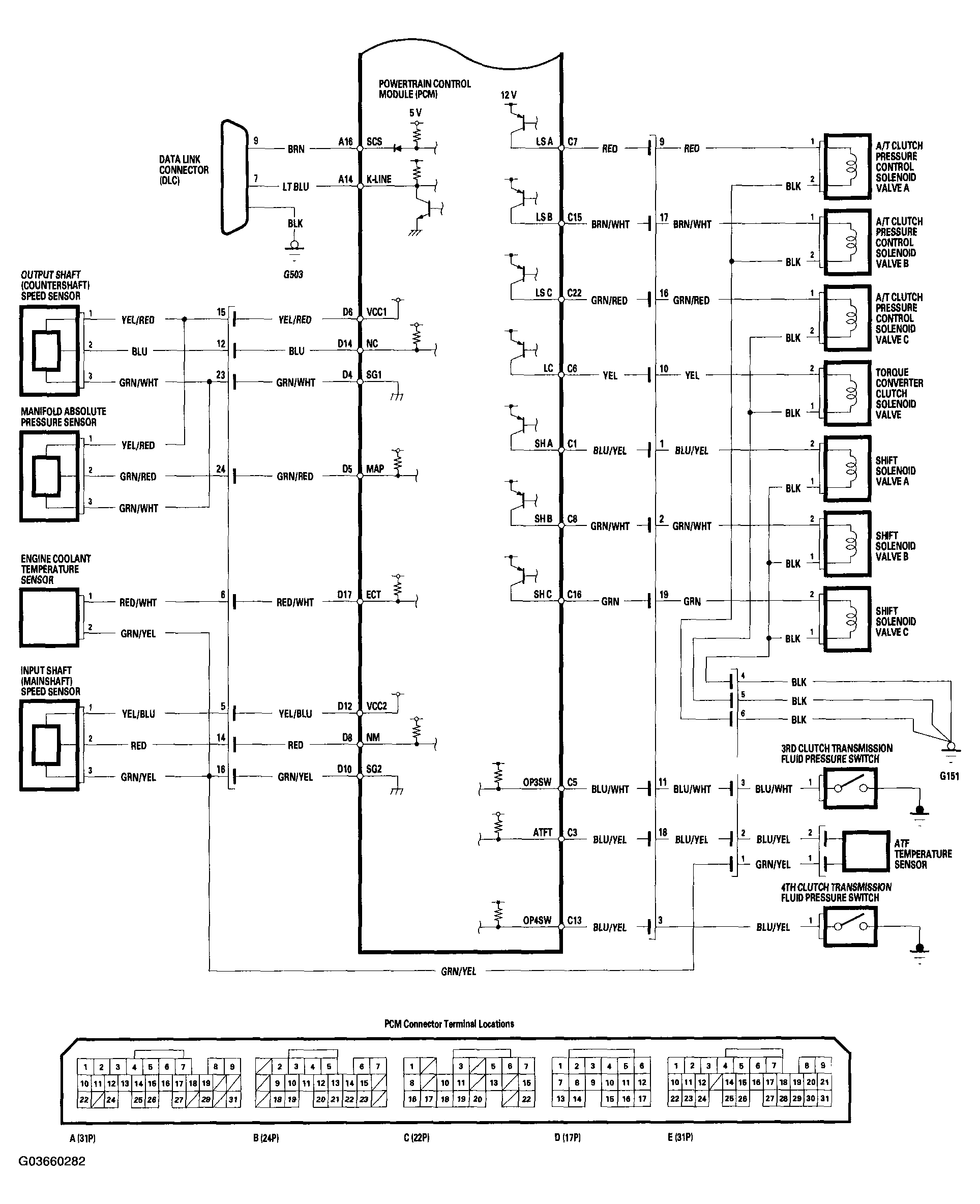

Fig 2: Circuit Diagram - PCM A/T Control System - 2004-2005 Models (2 Of 2)
G03660282Courtesy of AMERICAN HONDA MOTOR CO., INC.
