Home >> Acura >> 2004 >> RSX Base, Standard >> Repair and Diagnosis >> Heating, Ventilation & A/C (HVAC) >> HVAC Control Systems >> Climate Control System >> Circuit Diagram

Circuit Diagram

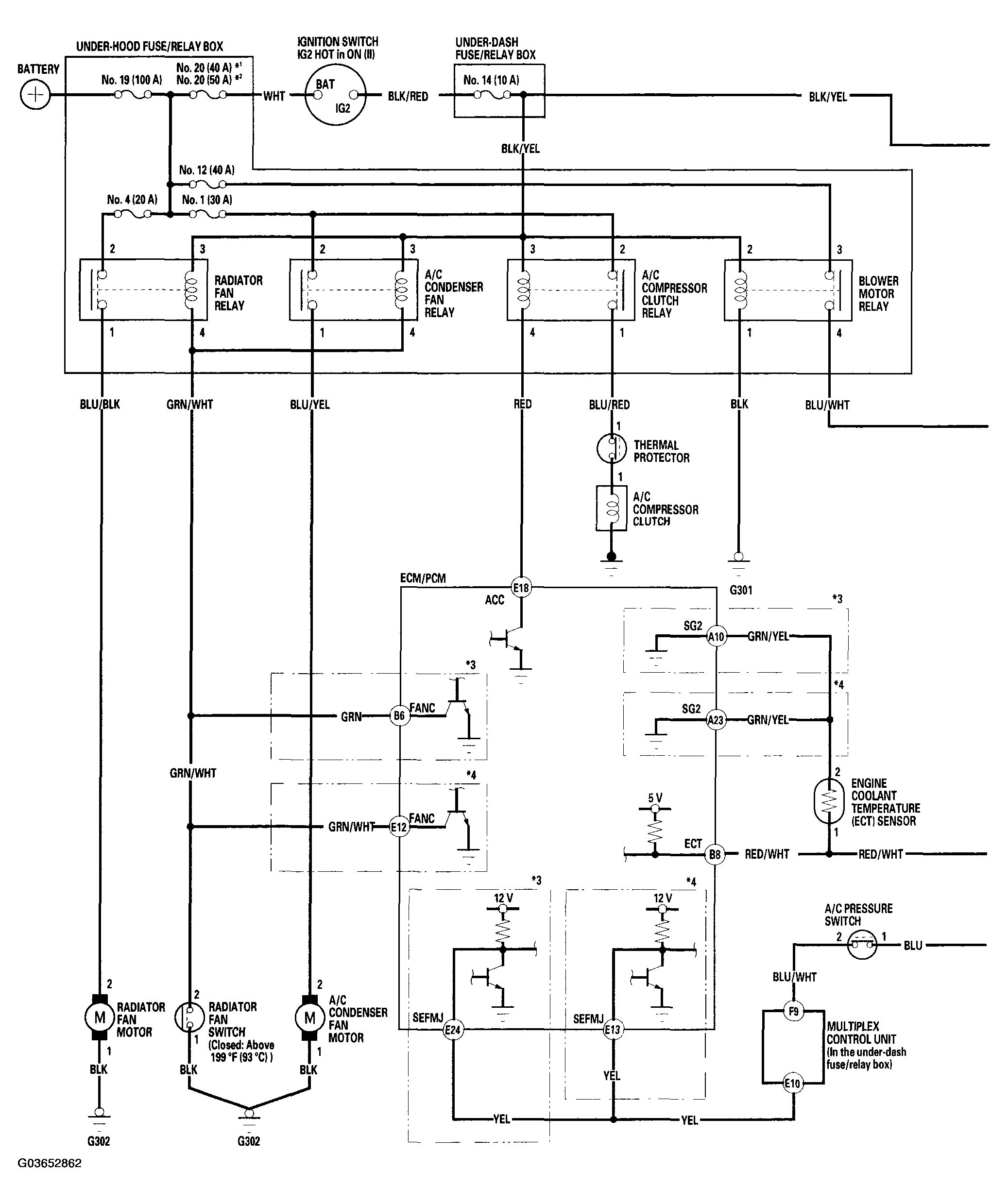

Fig 1: Circuit Diagram (1 Of 2)

G03652862

Courtesy of AMERICAN HONDA MOTOR CO., INC.

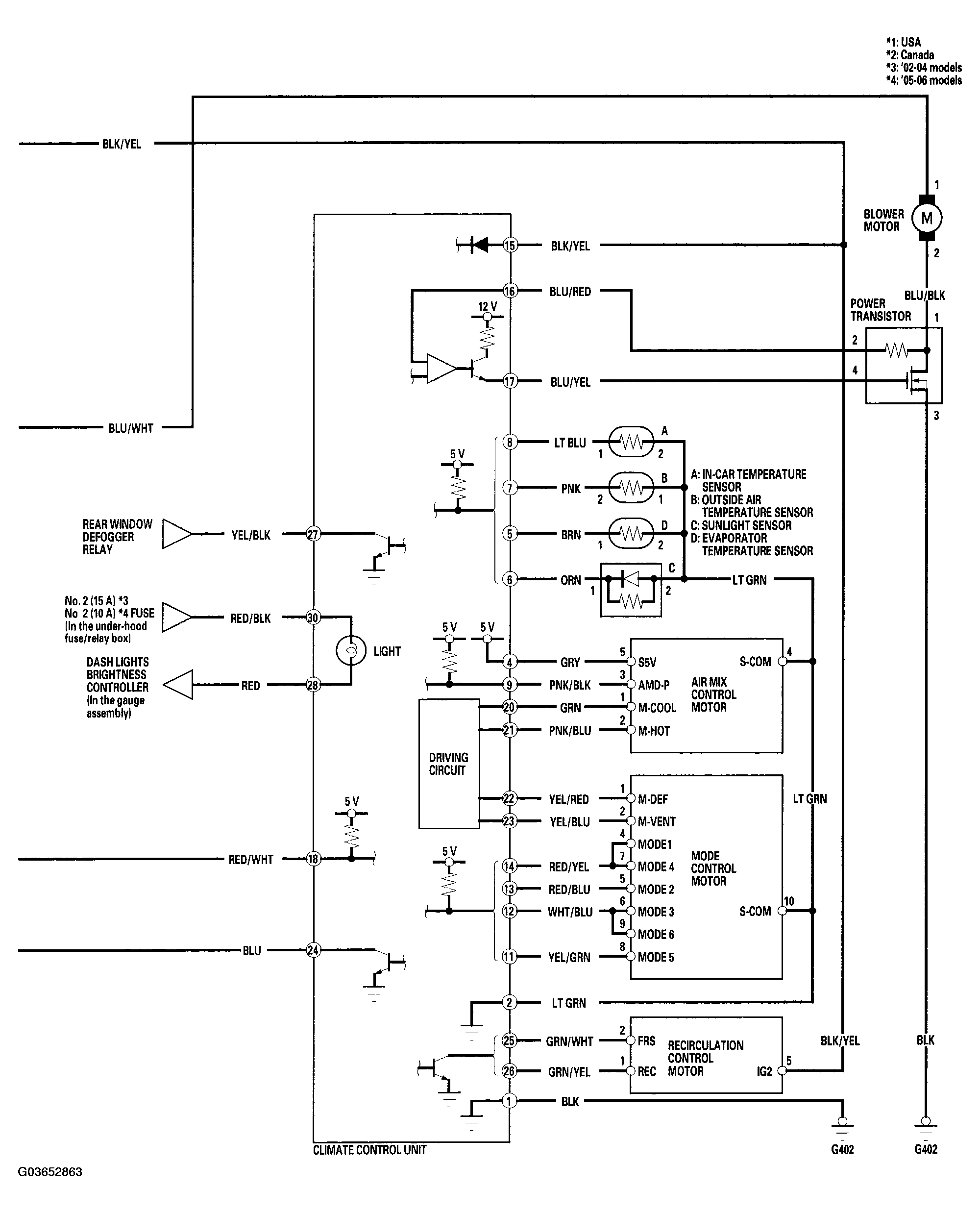

Fig 2: Circuit Diagram (2 Of 2)

G03652863

Courtesy of AMERICAN HONDA MOTOR CO., INC.
