Intake Air Bypass Control Thermal Valve

When the engine is running during warm up, the intake air bypass control thermal valve sends air to the injector.

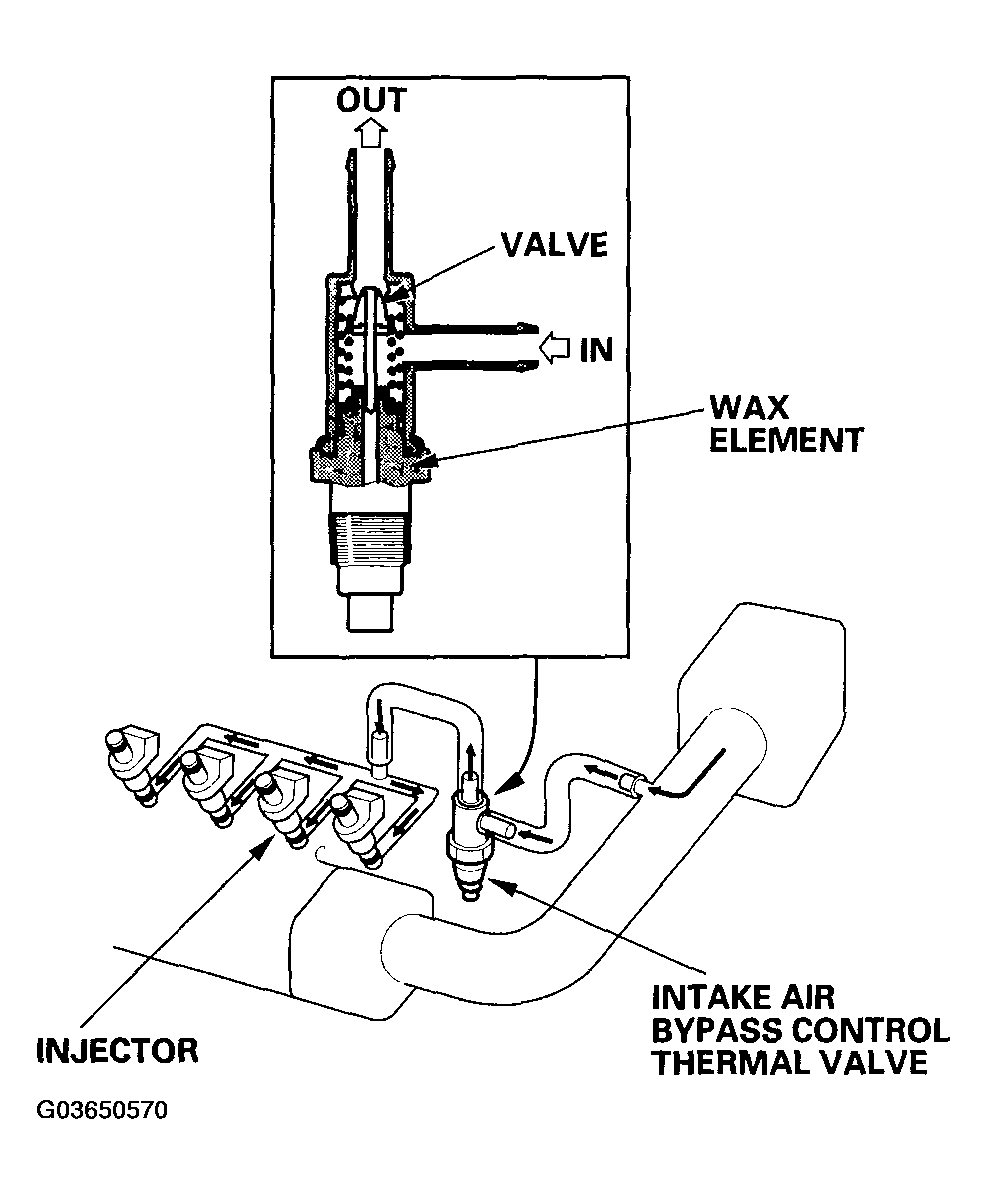

Fig 1: Identifying Intake Air Bypass Control Thermal Valve

Courtesy of AMERICAN HONDA MOTOR CO., INC.
