ECM/PCM Inputs and Outputs at Connector B (24P)-2005-2006 Models

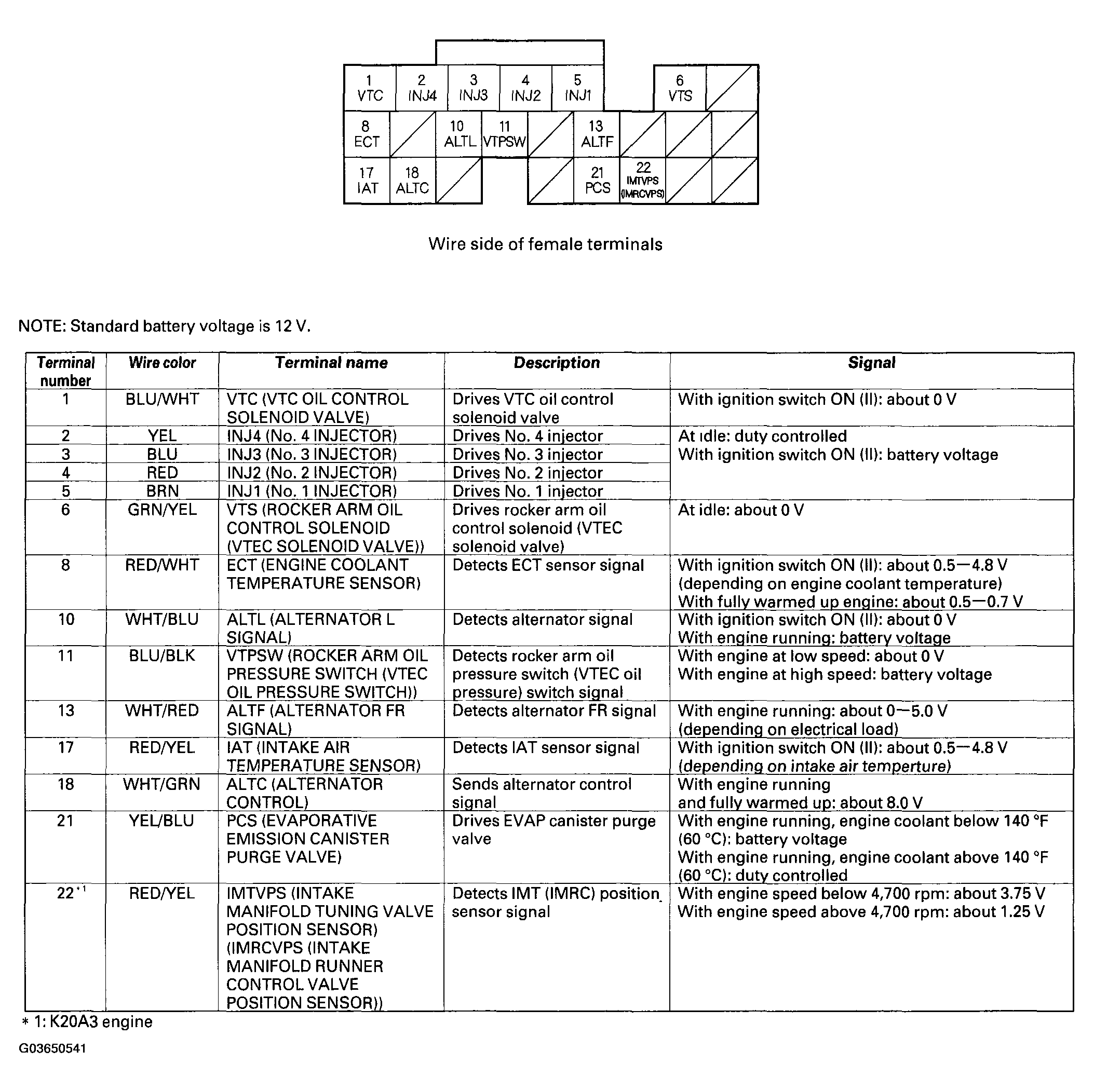

Fig 1: Identifying ECM\PCM Connector B (24P) And Terminal Description

G03650541

Courtesy of AMERICAN HONDA MOTOR CO., INC.
