ABS Modulator-Control Unit Inputs and Outputs for 25P Connector (cont'd)

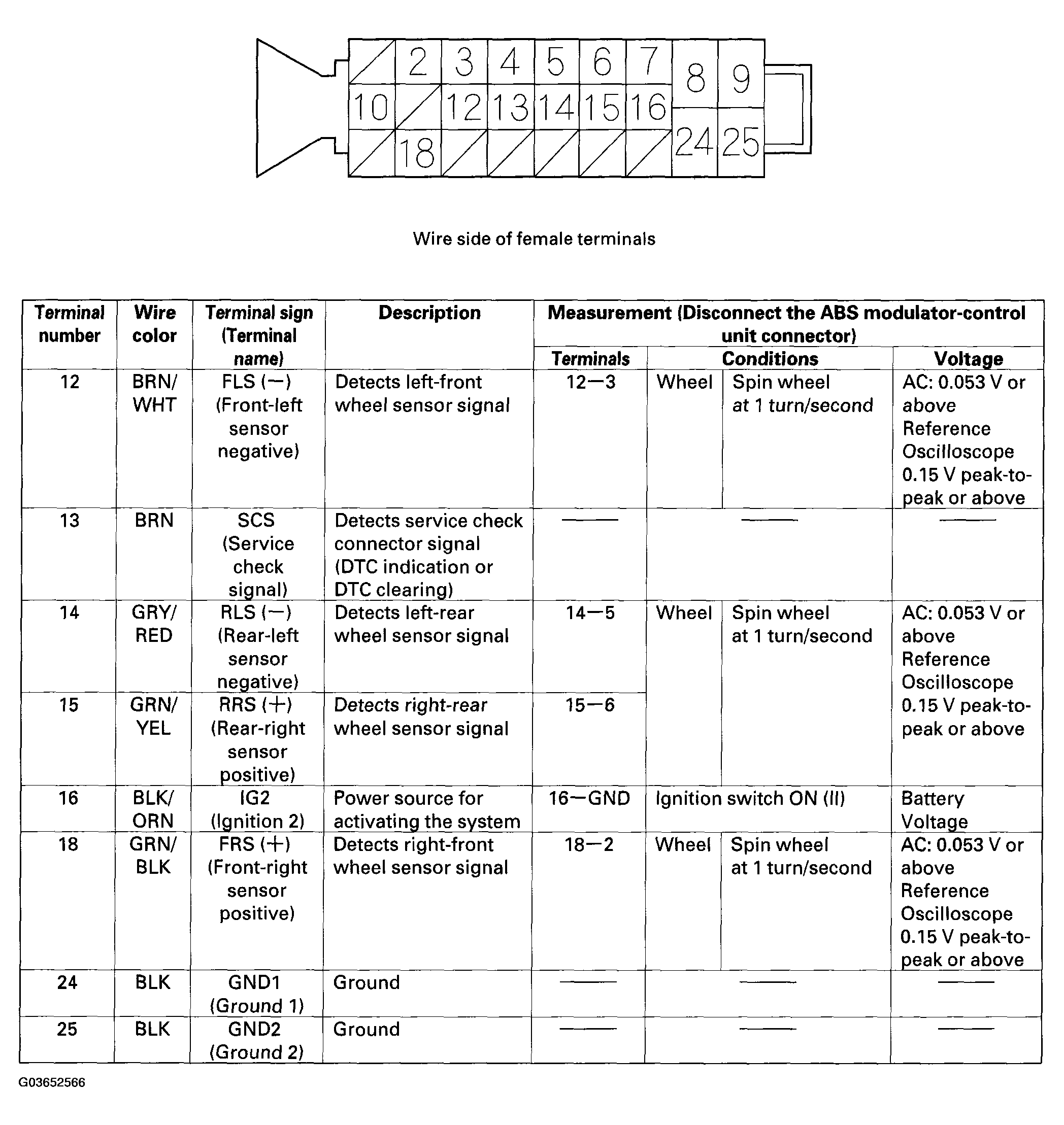

Fig 1: View Of Connector 25P Terminal Voltage Specification (12-25)

G03652566

Courtesy of AMERICAN HONDA MOTOR CO., INC.
