Without BOSE Sound System

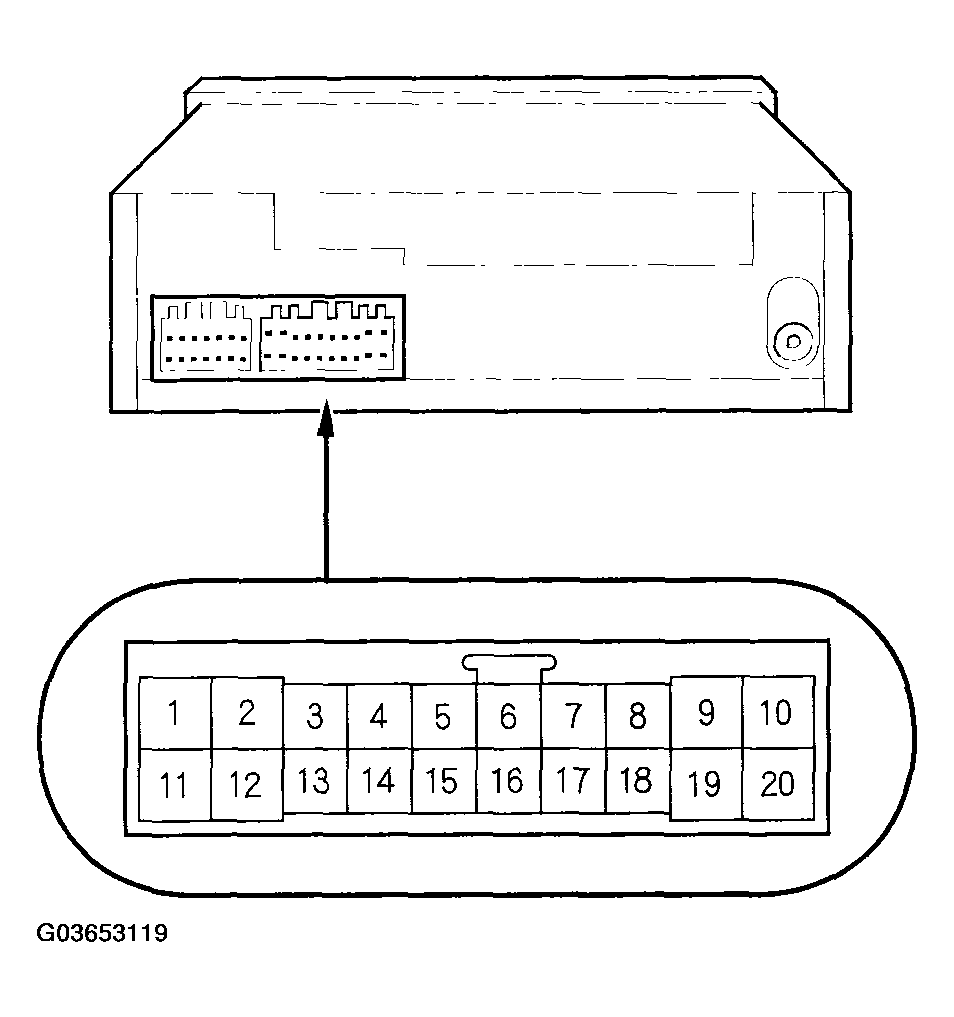

When replacing an audio unit connector, match the wires to the cavities as listed in the following table.
SYSTEM DESCRIPTION
| Cavity | Wire | Connects to | ||
|---|---|---|---|---|
| 1 | YEL/GRN(1) | Antenna amplifier power | ||
| 2 | YEL/RED | ACC (Main stereo power supply) | ||
| 3 | - | Not used | ||
| 4 | RED/WHT | Security input | ||
| 5 | PNK | Right rear speaker (+) | ||
| 6 | BLU/WHT | Left rear speaker (+) | ||
| 7 | GRN/YEL | Passenger's door speaker (+), Right tweeter (+) | ||
| 8 | GRN/BLK | Driver's door speaker (+), Left tweeter (+) | ||
| 9 | RED/BLK | Lights-on signal | ||
| 10 | WHT/RED | Constant power | ||
| 11 | - | Not used | ||
| 12 | - | Not used | ||
| 13 | - | Not used | ||
| 14 | - | Not used | ||
| 15 | BLU/YEL | Right rear speaker (-) | ||
| 16 | BLU/BLK | Left rear speaker (-) | ||
| 17 | GRY/RED | Passenger's door speaker (-), Right tweeter (-) | ||
| 18 | LT GRN | Driver's door speaker (-), Left tweeter (-) | ||
| 19 | RED | Dash lights brightness controller (In the gauge assembly) | ||
| 20 | BLK | Ground (G403) | ||
|
||||
