PCM Inputs and Outputs at Connector B

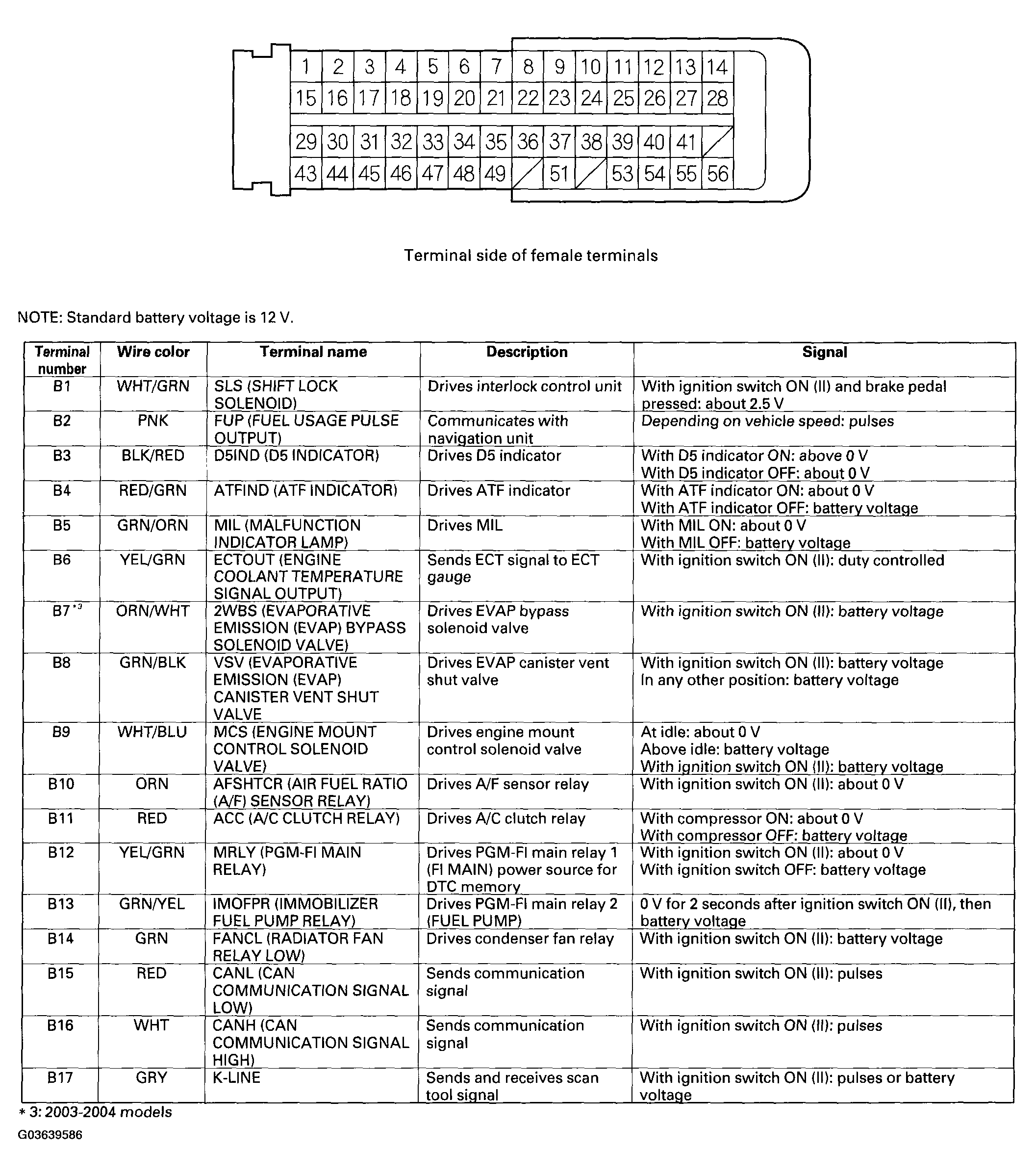

Fig 1: PCM Inputs And Outputs At Connector B (1 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

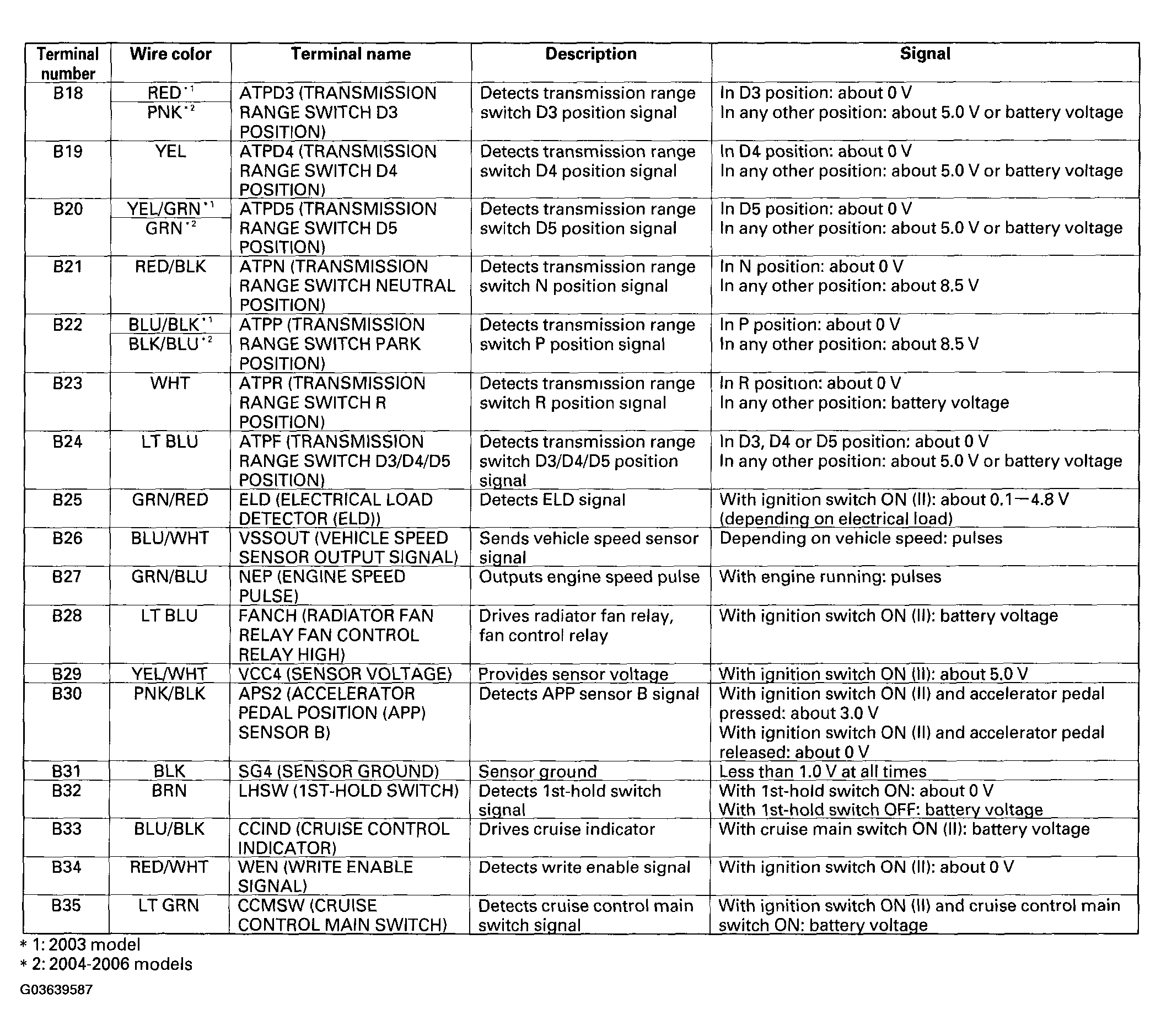

Fig 2: PCM Inputs And Outputs At Connector B (2 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

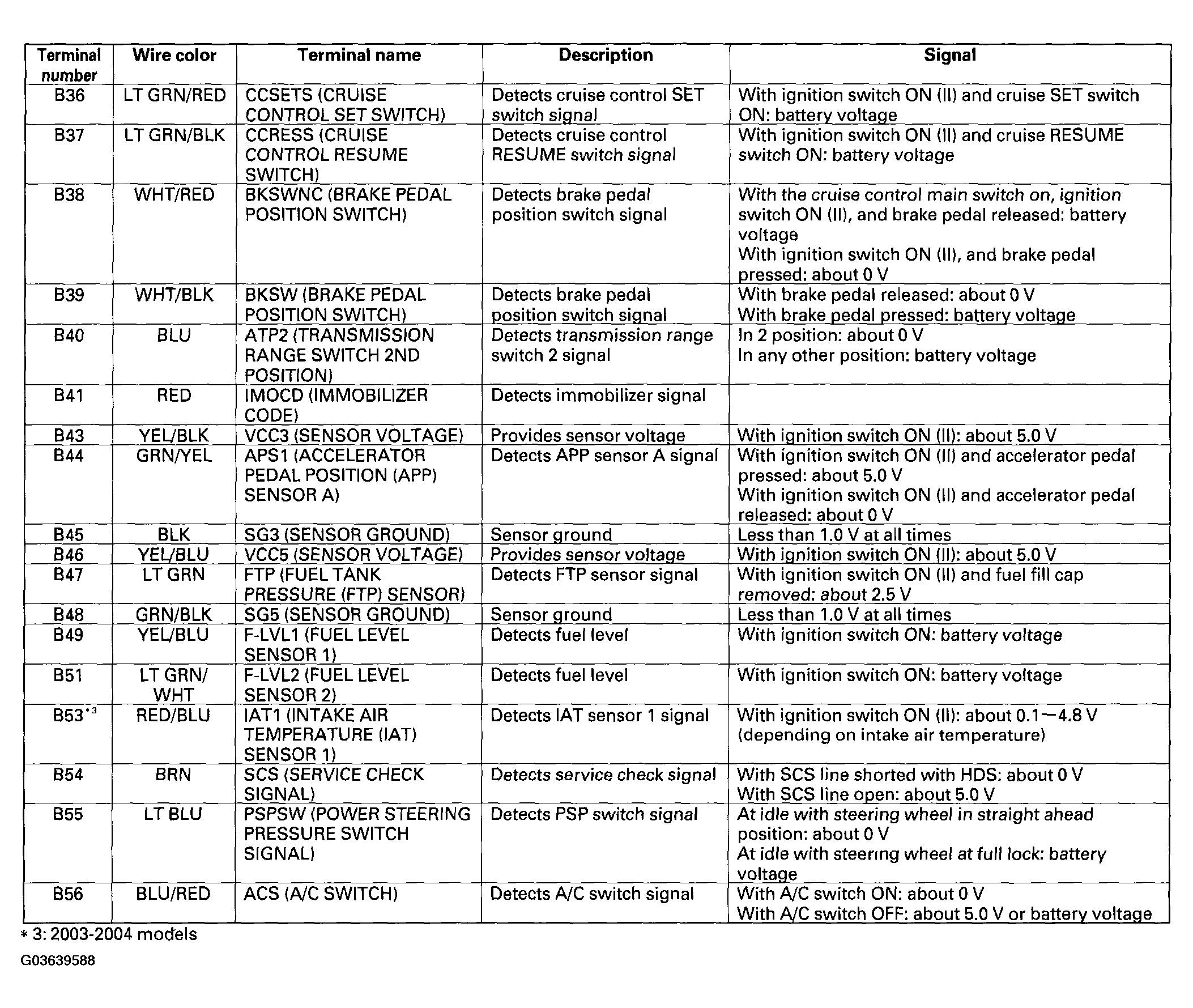

Fig 3: PCM Inputs And Outputs At Connector B (3 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
