Fluid Leakage Inspection

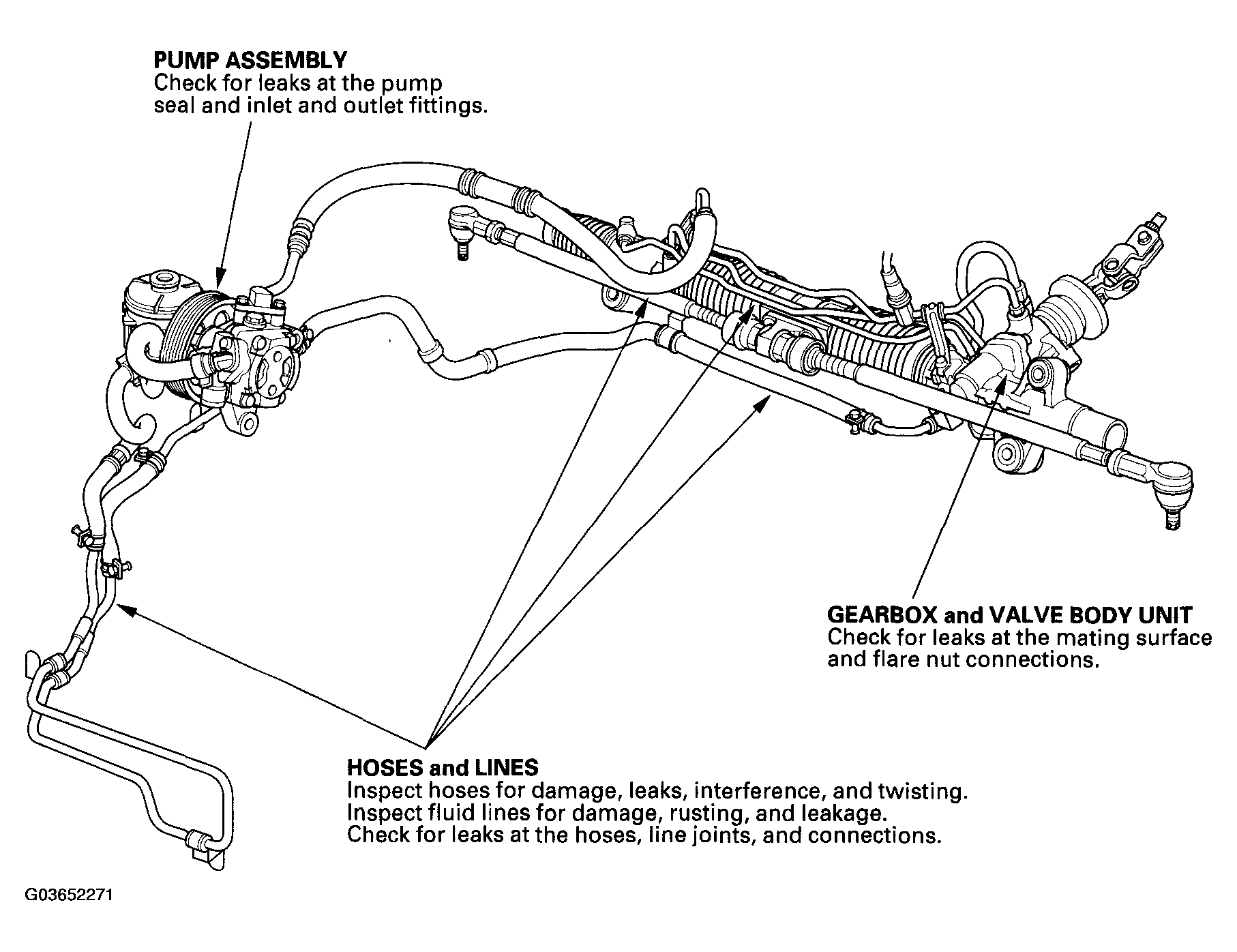

Fig 1: Identifying Fluid Leakage

G03652271

Courtesy of AMERICAN HONDA MOTOR CO., INC.
