Evaporator Temperature Sensor Replacement

  1. Disconnect the 2P connector (A) from the evaporator temperature sensor (B), then remove the connector clip (C) and wire harness clip (D). Remove the self-tapping screw, and carefully pull out the evaporator temperature sensor.

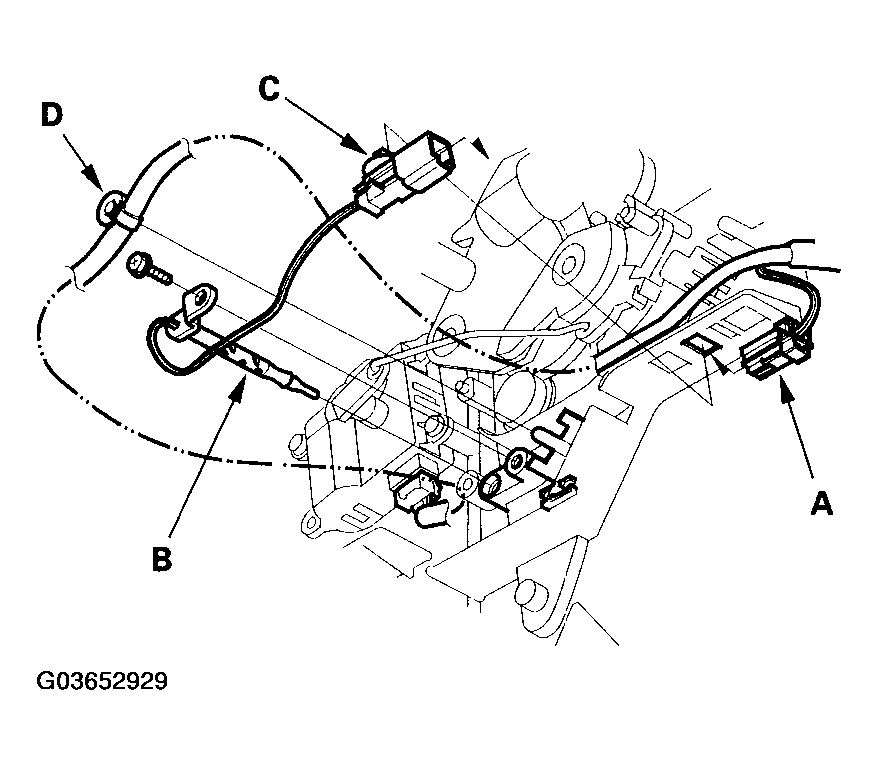

    Fig 1: Disconnecting 2P Connector From Evaporator Temperature Sensor And Removing Connector Clip And Wire Harness Clip
    G03652929Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install the sensor in the reverse order of removal.
