PCM Inputs and Outputs at Connector C (22P)-2005-2006 Models

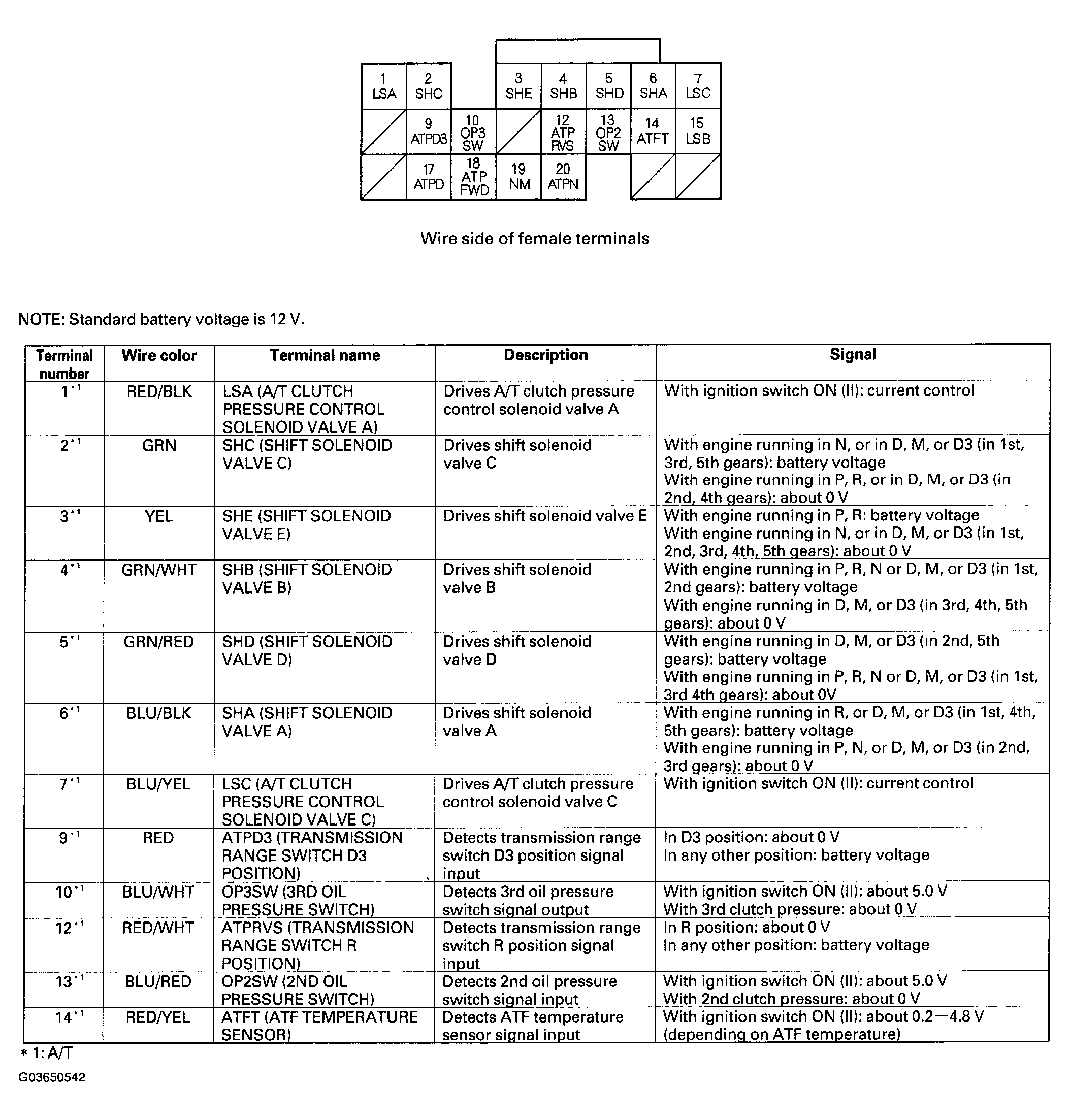

Fig 1: Identifying PCM Connector C (22P) And Terminal Description (1 Of 2)
G03650542Courtesy of AMERICAN HONDA MOTOR CO., INC.

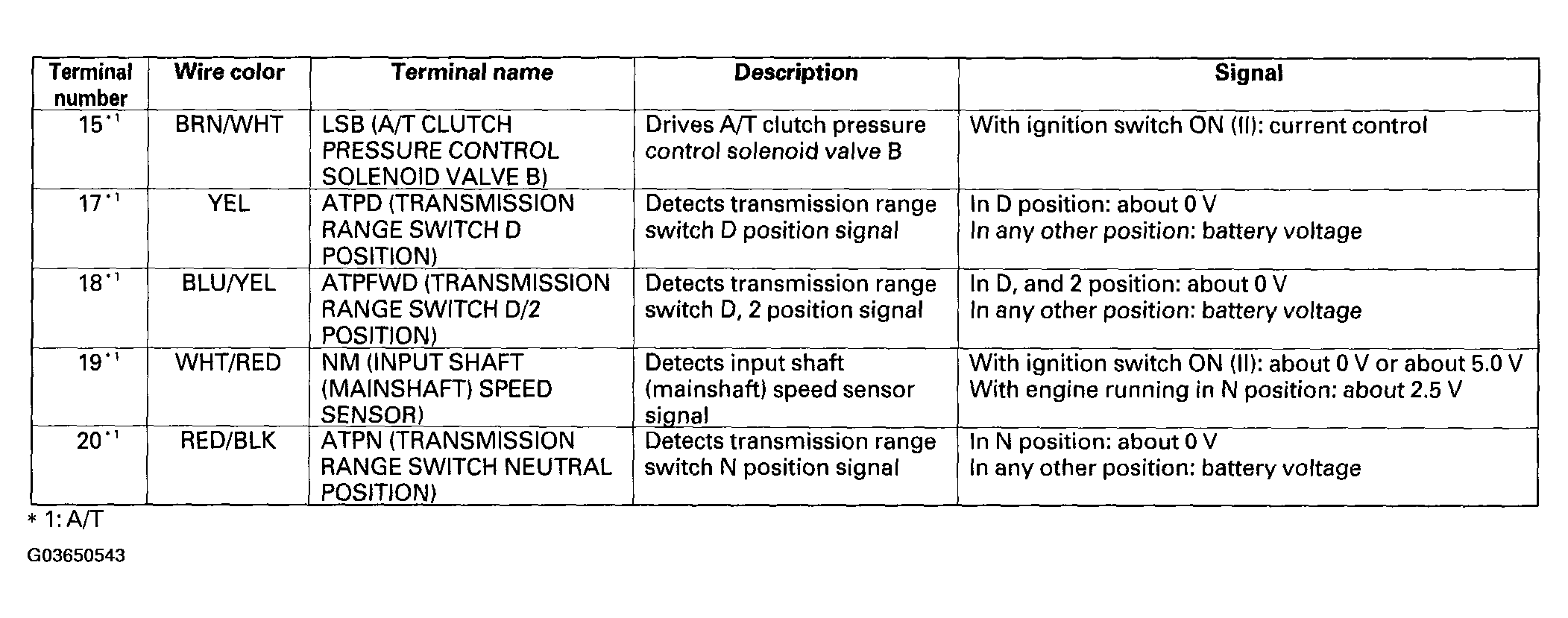

Fig 2: Identifying PCM Connector C (22P) And Terminal Description (2 Of 2)
G03650543Courtesy of AMERICAN HONDA MOTOR CO., INC.
