Alternator Control System Test (K20A2 Engine)

For alternator control system test (K20A2 Engine) see, Fig 1.

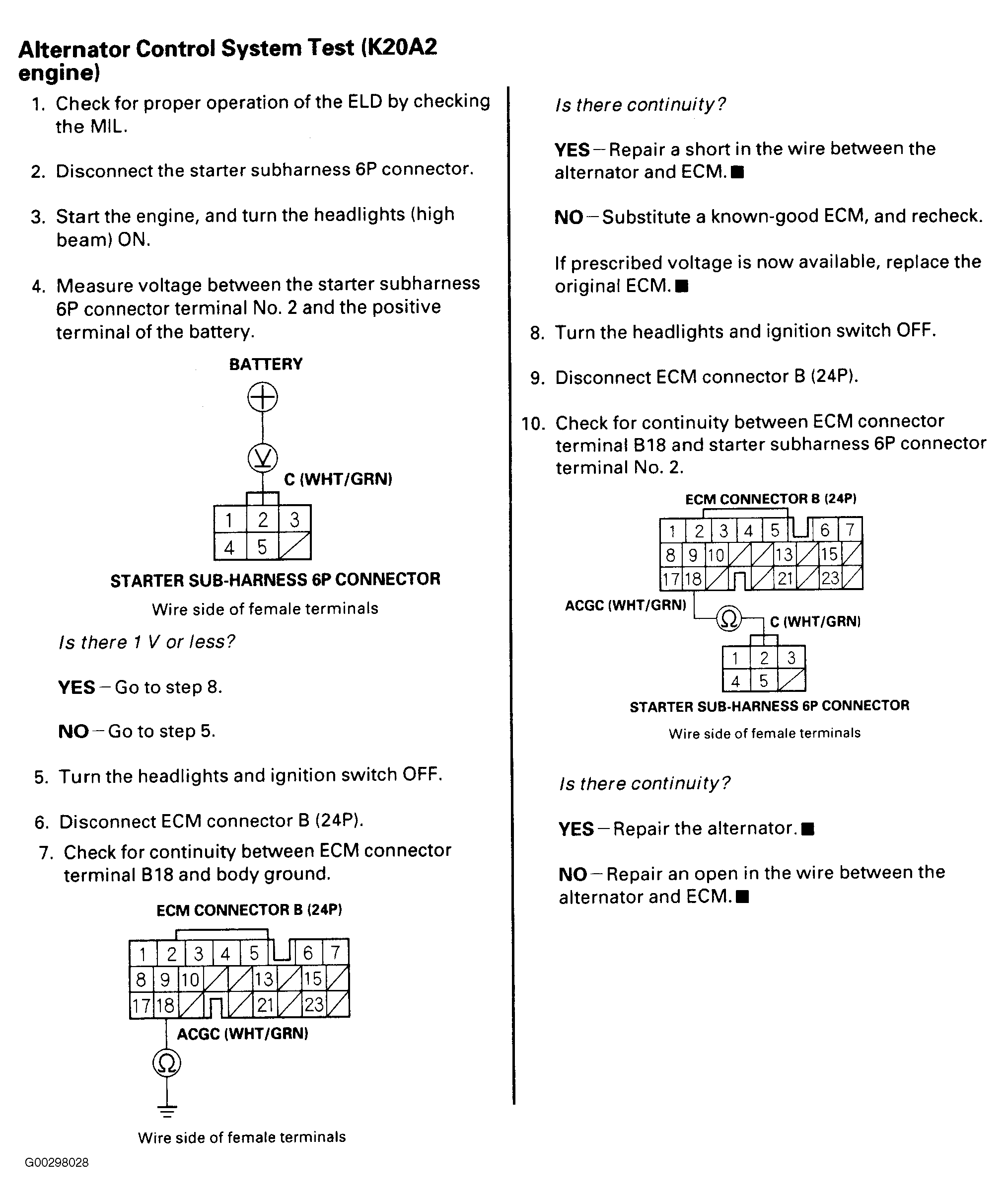

Fig 1: Alternator Control System Test (K20A2 Engine)
G00298028Courtesy of AMERICAN HONDA MOTOR CO., INC.
