Ignition Key Switch Test

NOTE: For more key-in beeper information, refer to the circuit diagram (see CIRCUIT DIAGRAM ) and input test (see CONTROL UNIT INPUT TEST ).

When the ignition key is in the ignition switch, the key-in beeper circuit of the multiplex control unit senses ground through the closed ignition key switch. When you open the driver's door, the beeper circuit senses ground through the closed door switch. When both switches are closed (driver's door and ignition), the key-in beeper in the gauge assembly is activated.

Remove the steering column upper and lower covers (see STEERING COLUMN REMOVAL AND INSTALLATION ).
Disconnect the 6P connector.

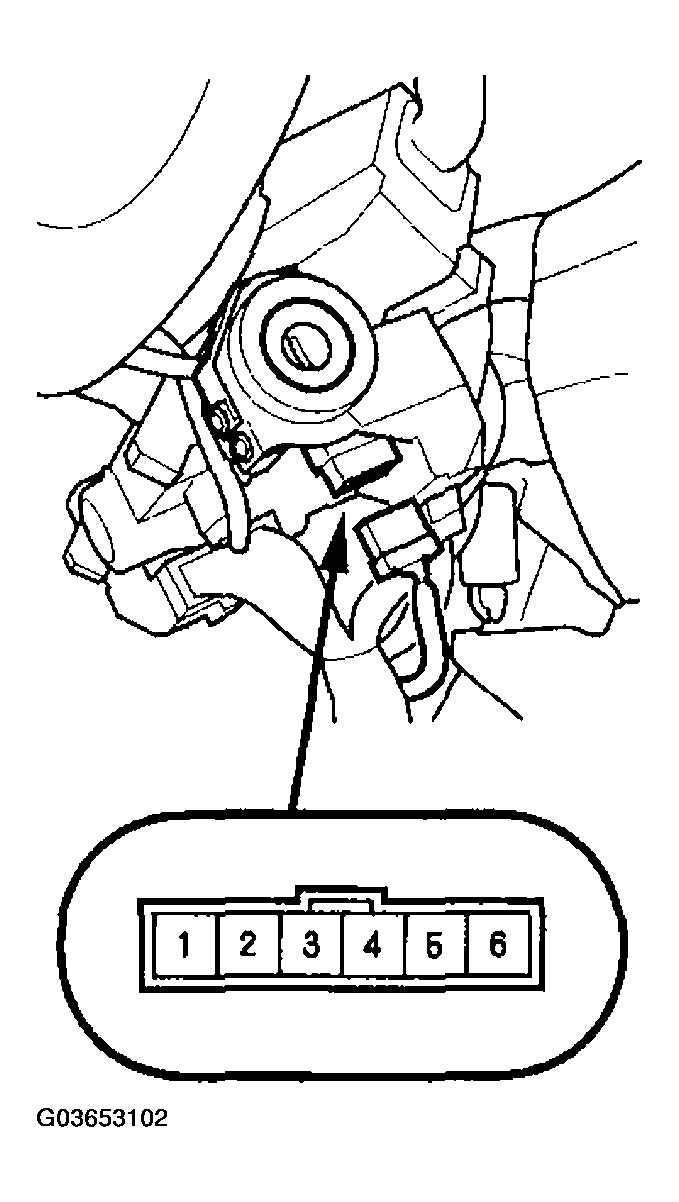

Fig 1: Disconnecting 6P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between the No. 1 and No. 2 terminals.
- There should be continuity with the key in the ignition switch.
- There should be no continuity with the key removed.
If the continuity check is not as specified, replace the steering lock assembly.
