2002-2004 Models

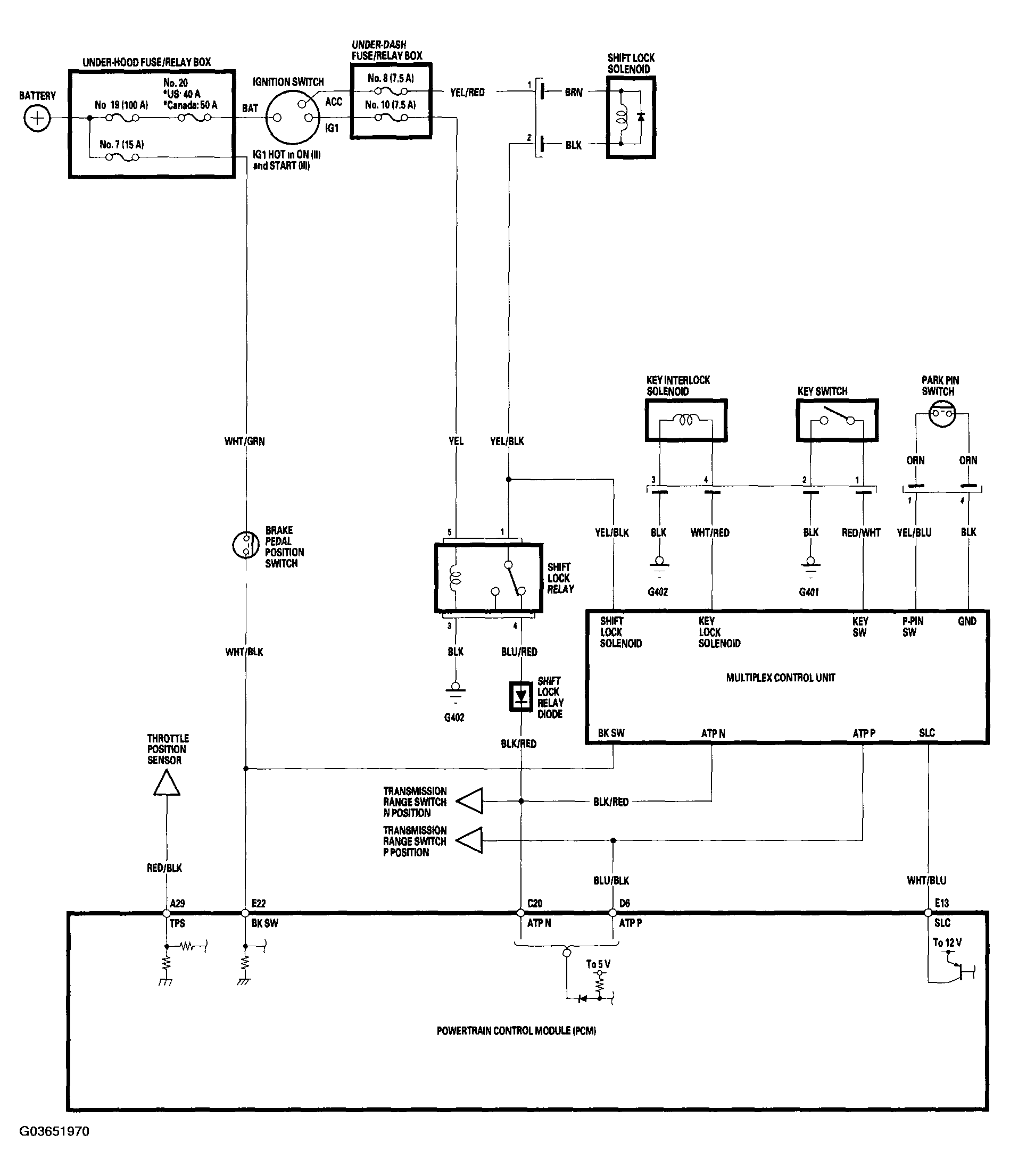

Fig 1: A/T Interlock System Circuit Diagram (2002-2004 Models)

G03651970

Courtesy of AMERICAN HONDA MOTOR CO., INC.
