Multi-information Display Unit (Except Touring Navigation) Connector End View

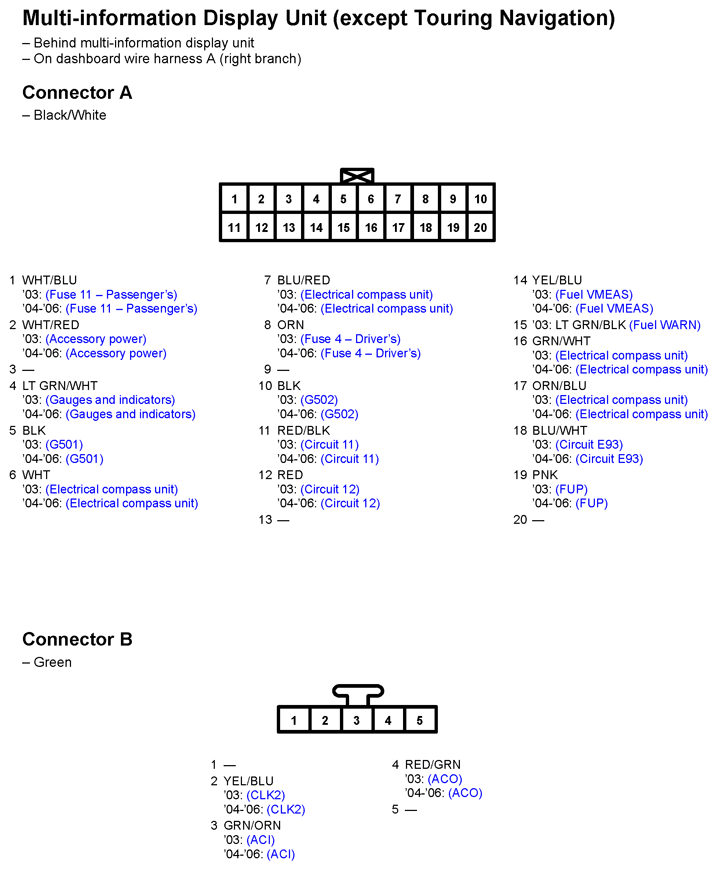

Fig 1: Multi-information Display Unit (Except Touring Navigation) Connector End View
G11248274Courtesy of AMERICAN HONDA MOTOR CO., INC.
