Individual Map Lights, Rear Connector End View

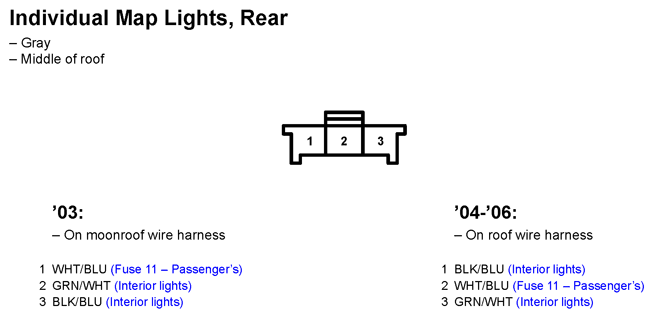

Fig 1: Individual Map Lights, Rear Connector End View

G11248101

Courtesy of AMERICAN HONDA MOTOR CO., INC.
