Electrical Compass Unit (Except Touring Navigation) Connector End View

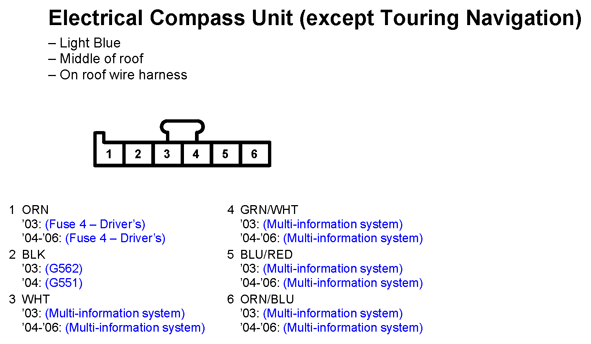

Fig 1: Electrical Compass Unit (Except Touring Navigation) Connector End View

G11248169

Courtesy of AMERICAN HONDA MOTOR CO., INC.
