C602 Connector End View

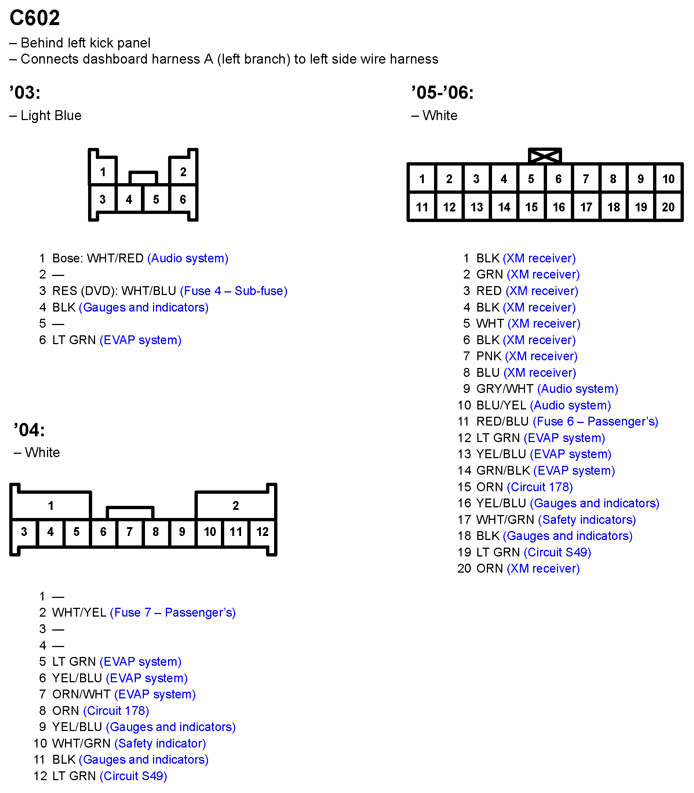

Fig 1: C602 Connector End View

G11248187

Courtesy of AMERICAN HONDA MOTOR CO., INC.
