Driver's Door Power Tailgate Switch Test/Replacement

WARNING: This page is about a different car, the 2009 Acura MDX, 2008 Acura MDX, and 2007 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the driver's door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).
  2. Disconnect the 7P connector (A) from the fuel fill door opener/driver's door power tailgate switch (B), then push the switch out from behind the door panel.

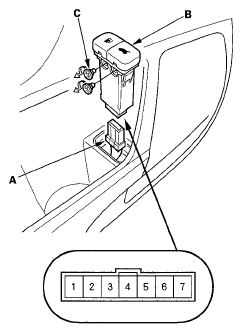

    Fig 1: Identifying 7P Connector And Door Opener/Driver'S Door Power Tailgate Switch
    G05488405Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Check for continuity between the terminals in each switch position according to the table.
    Fig 2: Checking For Continuity Between Terminals In Each Switch Position
    G05488406Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. If the continuity is not as specified, replace the bulbs (C) or the switch.
