Rear Controller and Screen Connector for Inputs and Outputs

WARNING: This page is about a different car, the 2009 Acura MDX, 2008 Acura MDX, and 2007 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

When replacing a rear controller and screen connector, match the wires to the cavities listed in the following table.

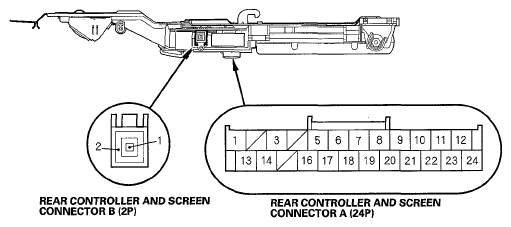

Fig 1: Identifying Rear Controller And Screen Connector Terminals

Courtesy of AMERICAN HONDA MOTOR CO., INC.

REAR CONTROLLER AND SCREEN CONNECTOR A (24P)

REAR CONTROLLER AND SCREEN CONNECTOR A (24P) TERMINAL REFERENCE

Cavity

Wire

Connect to

GRN

Rear controller and screen (+B)

LT BLU

Audio unit (RR BUS+)

PNK

Audio unit (RR NTSC GND)

WHT

Audio unit (RES AUDIO OUT GND)

BRN⁽¹⁾

Audio unit (RES AUDIO OUT SH)

PNK

Auxiliary jack assembly (HP R/L OUT GND)

BRN⁽¹⁾

Auxiliary jack assembly (HP R/L OUT SH)

A10

LTGRN

Audio unit (SCTY4)

A11

LT BLU

Lights-on signal

A12

YEL

Audio unit (SYSTEM ACC)

A13

BRN⁽¹⁾

Audio unit (RR BUS SH)

A14

PUR

Audio unit (RR BUS-)

A16

BLU

Audio unit (RR NTCS)

A17

BRN⁽¹⁾

Audio unit (RR NTSC SH)

A18

RED

Audio unit (RES AUDIO OUT L)

A19

BLK

Audio unit (RES AUDIO OUT R)

A20

BLU

Auxiliary jack assembly (HP R OUT)

A21

GRN

Auxiliary jack assembly (HP L OUT)

A22

PNK

Navigation (SCTY3)

A23

RED

Dash lights brightness controller

A24

BLK

Ground (G506)

⁽¹⁾	The shielded wires have a heat-shrunk tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.

REAR CONTROLLER AND SCREEN CONNECTOR B (2P)

REAR CONTROLLER AND SCREEN CONNECTOR B (2P) TERMINAL REFERENCE

Cavity	Wire	Connect to
B1	--	Audio unit (DIG AUDIO SIG)
B2	--	Audio unit (DIG AUDIO SH)
